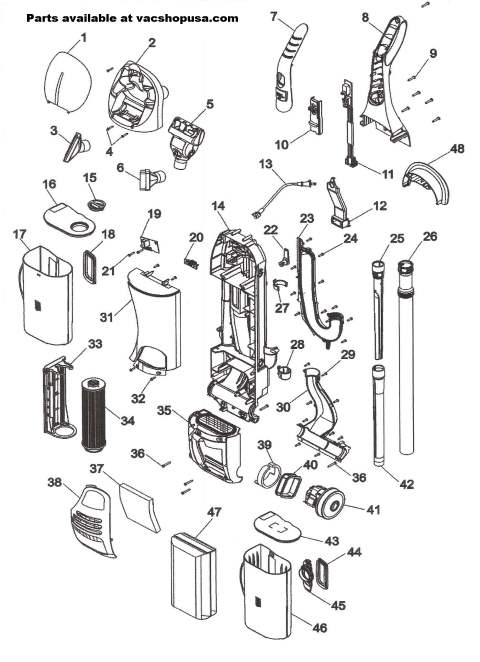

Hoover Savvy Part Schematic Model U8172-900 U8172900
 |
|
|
| Key | Part
Number | Description |
| 1 | 37257281 | TOOL DOOR-CP |
| 2 | 36433195 | TOOL HOLDER W/THT-AEM |
| 3 | 38614044 | FURNITURE NOZZLE-AGR |
| 4 | 21447072 | SCREW |
| 5 | 49129027 | TURBINE HAND TOOL |
| 6 | 43414195 | DUSTING BRUSH ASSEMBLY-AGR |
| 7 | 92001057 | LENS - HANDLE GRIP |
| 8 |
92001052 | UPPER HANDLE ASSEMBLY |
| 9 | 214472ED | SCREW-SELF TAPPING-C |
| 10 | 38421112 | SWITCH BUTTON-AGR |
| 11 |
27854033 | SWITCH / CIRCUIT BOARD
w / HANDLE |
| 12 | 36911006 | CONNECTOR MOUNT |
| 13 | 46383342 | ATTACHMENT CORD ASSEM-31 FT |
| 14 | 92001053 | UPPER HOUSING ASSEMBLY |
| 14 | 36433196 | HOSE HLDER UPPER-AGR |
| 15 | 38411013 | KNOB CART FILT-AG |
| 16 | 37249055 | DIRT CUP LID-AGR |
| 17 | 38775094 | DIRT CUP SERVICE |
| 18 | 38783029 | INLET SEAL-DIRT CUP-AG |
| 19 | 91001035 | EDF PRINTED CIRCUIT BOARD |
| 20 | 91001034 | RECEPTACLE / HARNESS |
| 21 | 21447072 | SCREW |
| 22 | 92001030 | CORD WRAP-AGR |
| 23 | 92001064 | MICROPHONE/DIRT DUCT ASSEMBLY |
| 24 | 21447242 | SCREW-SELF TAPPING |
| 25 | 38617031 | CREVICE TOOL-LONG-AGR |
| 26 | 43431227 | HOSE ASSEM COMP-AG/AGR |
| 27 | 36433197 | WAND HOLDER-UPPER-AGR |
| 28 | 36433194 | WAND HOLDER-LOWER-AGR |
| 29 | 21447242 | SCREW-SELF TAPPING |
| 30 | 38683018 | TRUNNION DUCT-AGR |
| 31 | 37249056 | FRONT PANEL-AEM |
| 32 | 21447242 | SCREW-SELF TAPPING |
| 33 | 91001048 | PRE-FILTER ASSEMBLY-AGR |
| 34 |
40140201 | CARTRIDGE FILTER |
| 35 | 37196177 | MOTOR COVER-AEM |
| 36 | 21447230 | SCREW-SELF TAPPING-F |
| 37 | 38766028 | FINAL FILTER
93002017 |
| 38 | 38769017 | FINAL FILTER DOOR-AAN |
| 39 | 34163016 | MUFFLER FOAM |
| 40 | 36322036 | MOTOR MOUNT-MIDDLE |
| 41 |
93001747 |
HOOVER MOTOR ASSEMBLY |
| 41 | 38785018 | MOTOR FACE SEAL-AG |
| 41 | 91001027 | THERMAL PROTECTOR |
| 42 | 38634078 | EXTENSION TUBE-AG |
| 43 | 37249065 | BAG CONTAINER LID-AGR |
| 44 | 38783035 | INLET SEAL-BAG CONT-BZ |
| 45 | 36424005 | BAG ADAPTER-AG |
| 46 | 37256005 | BAG CONTAINER-AFX |
| 47 | 4010100Y | ALLER FILT BAG Y - 3-PK |
| 48 | 36433196 | HOSE HLDER UPPER-AGR |
| 49 | 91001032 | HARNESS, WIRE UPPER |
|
|
| 1 | 91001038 | EDF NAMEPLATE |
| 2 | 92001046 | HOOD - AEM |
| 3 | 51661020 | MEDALLION |
| 4 | 017001FW | SCREW |
| 5 | 91001030 | TRUNNION SEAL |
| 6 | 21447242 | SCREW-SELF TAPPING |
| 7 | 92001042 | AGITATOR HOUSING |
| 8 | 91001031 | REFLECTOR |
| 9 | 92001051 | LENS |
| 10 | 92001049 | HEIGHT ADJUSTMENT KNOB |
| 11 | 92001050 | HEIGHT ADJUSTMENT CAM |
| 12 | 27313107 | BULB |
| 13 | 47173037 | LAMP SOCKET |
| 14 | 32434014 | REAR AXLE-AAX |
| 15 | 92001031 | REAR WHEEL-W/TREAD-AEA/AG |
| 16 | 160017-- | LOCK RING |
| 17 | 36913031 | SWITCH BRACKET-ABE |
| 18 | 91001026 | SWITCH |
| 19 | 91001036 | DISPLAY BRIDGE PCB |
| 20 | 92001040 | MOTOR BRACKET |
| 21 |
93001746 | AGITATOR MOTOR |
| 22 | 38434026 | HANDLE RELEASE LEVER-AG |
| 23 | 92001041 | MAIN BODY |
| 24 | 92001074 | NOZZLE LINER-CP |
| 25 |
91001028 | TIMING BELT |
| 26 |
93001748 | AGITATOR ASSEMBLY |
| 27 | 92001039 | FURNITURE GUARD/ BOTTOM PLATE |
| 28 | 32541007 | WHEEL SHAFT-AY |
| 29 | 38521009 | FRONT WHEEL-AG |
| 30 | 91001066 | WHEEL CARRIAGE ASSEMBLY |
| 31 | 38355010 | TORSION SPRING |
| 32 | 91001033 | HARNESS, WIRE FOOT |
|
