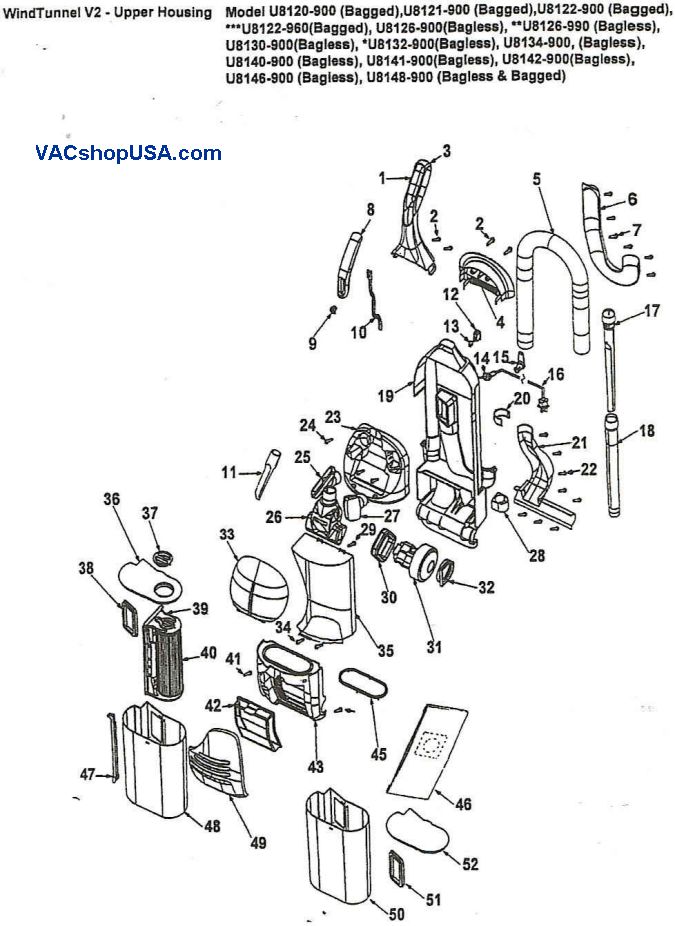

Ref. No
|
Part No
|
Description
|
Ref.No
|
Part No
|
Description |
|
1
|
39466056
|
Handle Assembly - ABE (Includes items 2,3,8,9.10)
|
35. |
37249038
|
Front Panel - AEF -
U8121-900, U8141-900 |
|
2.
|
214472ED
|
Screw
|
35. |
37249026
|
Front Panel - WW -
U8148-900 |
|
3.
|
21447236
|
Screw
|
36.
|
37249035
|
Dirt Cup Lid - Bagiess |
|
4.
|
36433164
|
Hose Holder - Upper
|
37.
|
38411010
|
Knob - Cartridge Filter -
Bagiess |
|
5.
|
43431223
|
Hose Assembly
|
38.
|
38783029
|
inlet Seal - Bagiess |
|
6.
|
38646084
|
Dirt Duct Cover
|
39.
|
36426051
|
Pre Filter (inc. item 47) -
Bagiess |
|
7.
|
21447242
|
Screw
|
40.
|
40140201
|
HEPA Cartridge Filter -
Bagiess |
|
8.
|
39454078
|
Handle Grip -AEF
|
41.
|
21447230
|
Screw |
|
9.
|
38421103
|
Switch Button
|
42.
|
38766028
|
Final Filter - Foam -
Bagiess |
|
10.
|
38458064
|
Switch Rod
|
|
43613024
|
Final Filter - HEPA -
Bagged |
|
11.
|
38617027
|
Crevice Tool
|
43.
|
37196163
|
Motor Cover- AFS, U8130-900 |
|
12.
|
28161067
|
Switch
|
|
37196170
|
Motor Cover - ADM -
U8126-900 |
|
13.
|
|
|
|
37196164
|
Motor Cover - AFM -
UB140-900 |
|
14.
|
36215028
|
Cord Protector
|
|
37196171
|
Motor Cover - AEF -
U8141-900 |
|
15.
|
3944201P
|
Cord Wrap
|
|
|
|
|
16.
|
46383342
|
Cord Assembly - 30'
|
|
37196166
|
Motor Cover - ABR -
U8142-900 |
|
17.
|
38617029
|
Crevice Tool -Long
|
|
37196161
|
Motor Cover - AFJ -
U8120-900 |
|
18.
|
38634078
|
Extension Tube
|
|
37196168
|
Motor Cover - ACF -
U8134-900 |
|
19.
|
37259011
|
Upper Housing (Inc. items 12, 28)
|
|
37196169
|
Motor Cover - ACF -
U8122-900 |
|
20.
|
36433165
|
Wand Holder -Upper
|
|
|
|
|
21.
|
38683016
|
Trunnion Duct - ABE
|
|
37196165
|
|
| |
38781066
|
Gasket for Trunnion Cover - cut to fit
|
44.
|
21447230
|
Screw |
|
22.
|
21447242
|
Screw
|
45.
|
38785017
|
Exhaust Seal |
|
23.
|
36433163
|
Tool Holder - AFJ - U8120-900
|
46.
|
4010100Y
|
Throw Away Bag - 3 Pack -
Bagged |
| |
36433180
|
Tool Holder - AG - U8122-900
|
47.
|
39512020
|
Expulsion Blade - Bagiess |
| |
36433179
|
Tool Holder - ADM - U81 26-900
|
48.
|
38775094
|
Dirt Cup- Bagiess |
| |
36433170
|
Tool Holder- AFS - U81 30-900
|
49.
|
38769017
|
Final Filter Door - CP |
| |
36433177
|
Tool Holder - ACF - U8134-900
|
50.
|
37256003
|
Bag Container - (Inc. item
46, 51, 52) Bagged - Models prior to 06/03 |
| |
36433162
|
Tool Holder - AFM - U8140-900
|
|
|
|
| |
36433183
|
Tool Holder - AEF - U8141-900, U8121-900
|
|
37256004
|
Bag
Container -(Inc. item 46,51,52 &
Bag Adapter) Models 06/03 and after. |
| |
36433175
|
Tool Holder - ABR - U8142-900
|
51.
|
38783031
|
Inlet Seal-Bagged-Mdls.
before 06/03
|
| |
36433178
|
Tool Holder - AG - U8146-900
|
|
38783029
|
Inlet Seal - Bagged Mdls.
Models prod. 06/03 and after |
| |
36433174
|
Tool Holder - WW - U8148-900
|
|
|
|
|
24.
|
21447072
|
Screw
|
52.
|
37249041
|
Bag Container Lid - Bagged |
|
25.
|
3B61401E
|
Furniture Nozzle
|
|
|
|
|
26.
|
49129015
|
Turbine Hand Tool - AFN U81 34-900, U8140-900. U8142-900,
U8146-900, U8148-900
|
|
|
|
| |
49129019
|
Turbine Hand Tool - AFX - U8121-900, U8141-900
|
|
|
|
|
27.
|
43414174
|
Dusting Brush Assembly
|
|
|
|
|
28.
|
36433166
|
Wand Holder -Lower
|
|
|
|
|
29.
|
21447242
|
Screw
|
|
|
|
|
30.
|
36322036
|
Motor Mount -Middle
|
|
|
|
|
31.
|
27212053
|
Motor Assembly
|
|
|
|
|
32.
|
38785018
|
Motor Face Seal
|
|
|
|
|
33.
|
37257281
|
Tool Door
|
|
|
|
|
34.
|
21447242
|
Screw
|
|
|
|
|
35.
|
37249022
|
Front Panel - AFJ - U8120-900
|
|
|
|
| |
37249036
|
Front Panel - AG - U81 22-900
|
|
|
|
| |
37249034
|
Front Panel - ADM - U8126-900
|
|
|
|
| |
37249023
|
Front Panel - AFS - U8130-900
|
|
|
|
| |
37249032
|
Front Panel - ACF - U8134-806
|
|
|
|
| |
37249024
|
Front Panel - AFM - U8140-900
|
|
|
|
| |
37249031
|
Front Panel - ABR - U8142-900
|
|
|
|
| |
37249033
|
Front Panel - AG - U8146-900
|
|
|
|
