Vacuum Parts

Dirt Devil Part List
Euroclean Part List
Hoover Part List

Royal Part List

Click here for Complete Schematic with part prices

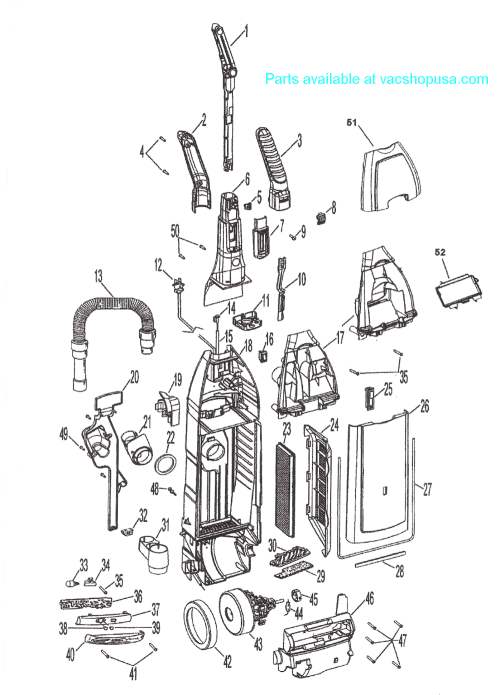

The above Hoover Schematic is for the following Hoover Windtunnel Models
 U6425-900

T
To look up the price of this Genuine  part or order online please enter the part number in the search field below.

Advanced Search:
Enter  Part Number to view price and availability:






Model Number: Hoover U6425900



BOM/Serial #:



Graphic Title:

Key

Part Number

Description



38512001

GRIP ROD-AG

2

39454068

HANDLE GRIP-BACK

3

39454071

HANDLE GRIB-FRONT

3

39454062

HANDLE GRIP-FRONT

4

21447228

SCREW-SELF- TAPPING

5

36142002

DRIVE CONTROL PIN-AB

5

36142004

DRIVE CONTROL PIN

6

39466040

UPPER HANDLE

7

37258119

SWITCH ROD POCKET-ABE

8

38421098

SWITCH BUTTON-ABR

8

38421005

SWITCH BUTTON-U6425/

9

21447242

SCREW-SELF TAPPING

10

38458051

SWITCH ROD-ABE

11

36923003

ROD GUIDE-ABE

12

46383331

CORD-35'

13

43434031

HOSE ASSEMBLY COMP

14

43211019

CONTROL CABLE-PUSH PULL

15

66661205

CONTROL CABLE TUBE

16

40309033

SWITCH KIT-SERVICE

16

28161067

SWITCH-WT-.025 TERM

17

36433135

TOOL HOLDER-U6425/45

17

36433153

TOOL HOLDER-ABE

18

37255025

BAG HOUSING-ABE

19

36433136

HOSEIWAND HOLDER-UPPER

20

37255010

REAR COVER-ABE

21

38641008

DIRT DUCT-ABE

21

47823004

EDF MICRO/DUCT ASSEM

22

31178017

HOSE CONNECTOR GASKET

23

40110006

FINAL FILTER PK

23

40110001

FINAL FILTER PK (12)

23

40120101

HEPA FINAL FILTER

24

38769004

FINAL FILTER GRILLE-ABE

25

51151010

BAG INDICATOR

26

37254162

BAG DOOR-U6470-900

26

37254249

BAG DOOR-ADM

Key

Part Number

Description

26

37254204

BAG DOOR-AFK U6471



26

37254192

BAG DOOR-AFE



26

37254170

BAG DOOR-AEC-U6470-9

26

37254113

BAG DOOR-ACM-U6449-9

26

37254169

Bag Door-U6446-900



26

37254144

Bag Door - ABR



26

37254228

BAG HSG DOOR-ADJ



26

37254110

BAG DOOR-ACJ-U6445-9

26

37254111

BAG DOOR-ABM-U6425-9

26

37254159

BAG DOOR-AAY-U643190

26

37254114

BAG DOOR-ABY -U6423-9

26

37254112

BAG DOOR-AG-U6455-90

27

38781057

BAG DOOR GSKT 34.5"

28

34123050

BAG DOOR GASKET-BOTTOM

29

38765019

SECONDARY FILTER

30

36426034

SECONDARY FILTER RET

31

41426150

WAND/HOSE HOLDER-SERVICE

32

34131005

WIRE OPENING SEAL-U6

33

27313101

LAMP

34

47173023

WIRING HARNESS

- -- --

34

47173027

WIRING HARNESS

34

47173024

WIRING HARNESS

34

47173028

WIRING HARNESS

35

21447072

SCREW

36

46851031

EDF PRINTED CIRCUIT BOARD

37

37944012

EDF COVER-BLANK-ABE

37

37944011

EDF COVER-ABE

38

27352031

SNAP IN LENS-GREEN

39

27352030

SNAP IN LENS-RED

40

39383100

LENS-CP

41

21447228

SCREW-SELF- TAPPING

42

36322035

MOTOR MOUNT-LRG

43

43576191

MOTOR ASSEMBLY

43

41311017

MOTOR BRUSH

44

47534032

Thermal Protector

44

28382093

THERMALPROTECTOR-WT

45

36322030

MOTOR MOUNT -SMALL

46

37195107

MOTOR COVER-ABE



Key

Part Number

Description

47

21447230

SCREW-SELF TAPPING-F

48

23149001

TAPPING SCREW & WASH

49

21447242

SCREW-SELF TAPPING

50

21447072

SCREW

51

37257250

TOOL DOOR-HE

52

36433155

TOOL HOLDER-CAP-ABE

53

36433154

TOOL RACK-ABE

60

49811074

Lead Wire-White-.250

60

21447242

SCREW-SELF TAPPING

60

34131019

WIRE OPENING PLUG

60

36131101

CONTROL CABLE SUPPORT

60

27618508

WIRE CONNECTOR

60

36215028

CORD PROTECTOR-WTBGL

60

3944201P

CORD WRAP

60

4010100Y

ALLER FIL T BAG Y - 3-PK

60

36436014

HANDLE SLEEVE

60

49811060

LEAD WIRE-WHITE-U642

60

38313037

NOZZLE SPRING

90

43414174

DUSTING BRUSH ASSEM-

90

3861401E

FURNITURE NOZZLE

90

38617027

CREVICE TOOL-ABR

90

38634078

EXTENSION TUBE-AG

90

40200013

TURBINE HAND TOOL

90

43414162

DUSTING 8RUSH-ABR-U5

90

43434042

EXTRA HOSE ASM COMP

90

49129010

Turbine Hand Tool

90

49129014

TURBINE TOOL-UPRIGHT



To look up the price of this Genuine  part or order online please enter the part number in the search field below.

Advanced Search:
Enter  Part Number to view price and availability:




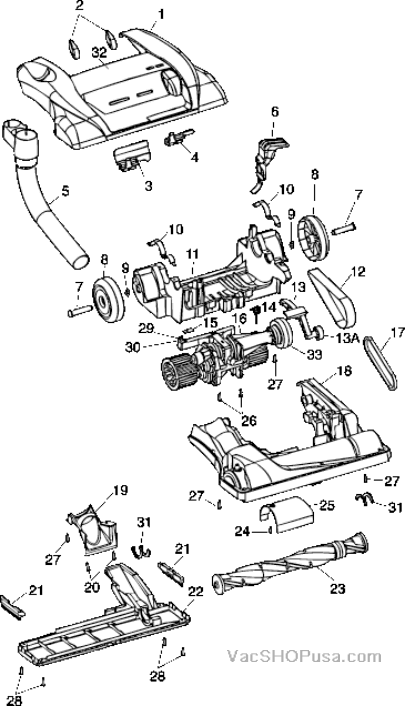

Item Part No. Description

 .



Note 1: U6425-900 early models serial numbers 059800001001
 through 059800002587





U6425-900 late models after serial number 059800002587





Note 2: When replacing an agitator housing on early model
U6425-900 units, also update the spring to



36131101

Control Cable Support (Not Shown)



160031

Nut for Drive Pulley (Not Shown)



43143046

Actuator Arm (Not Shown)

  1.

37253301

Hood Assembly U6425-900 U6425-920 U6430-900







  1.

37253317

Hood Assembly  U6450 (Includes Items 2 3 & 4)

  1.

37253300

Hood Assembly U6445-900 U6445-920 U6451-900

U6458-900 (Includes 2 3 & 4)

  1.

37253302

Hood Assembly U6436-900 U6455-900 U6455-960

 .



U6459-900 (Includes 2 3 & 4)

  1.

37253304

Hood Assembly U6449-900 (Includes items 2 3 4)

  1.

37253351

Hood Assembly U6470-900 U6470-910 (Includes 2 3 & 4)

  1.

37253359

Hood Assembly  U6446-900 U6460-900

 .



(Includes 2 3 & 4)

  1.

37253309

Hood Assembly U6423-900 (Includes 2 3 & 4)

  1.

37253317

Hood Assembly U6450-900 (Includes 2 3 & 4)

  1.

37253380

Hood Assembly U6432-900 (Includes 2 3 & 4)

  1.

37253348

Hood Assembly U6429-900 before 12/02 U6431-900

 .



(Includes 2 3 & 4)

  1.

37253384

Hood Assembly U6429-900 after 12/02 U6431-900

 .



after 6/01 (Includes 2 3 & 4)

  1.

37253398

Hood Assembly U6471-900 (Includes 2 3 & 4)

  1.

37253A24

Hood Assembly U6433-900 (Includes 2 3 & 4)

  2.

38421094

Adjustment Knob (2)

  3.

38563026

Nozzle Adjustment Cam

  4.

36143004

Idler Arm Lock

  5.

41426036

Wand Hose Holder

  5.



Control Cable Support (Not Shown)

  6.

38434021

Handle Release Lever (Models produced before February 2001)

  6.

38434023

Handle Release Lever (Models produced February 2001 and later)

  7.

32434008

Rear Axle (2)

  8.

43244005

Rear Wheel Assembly (2) Deluxe with rubber tread

  8.

38522077

Rear Wheel

  9.

160017

Retaining Ring

  10.

36131096

Trunnion Cover (2)

  11.

37241150

Main Body (This number Subs for 37241161)

  12.

38528035

Flat Belt

  13.

43241004

Idler Arm Assembly

  13.

43241006

Bearing & Pulley

  14.

38356015

Torsion Spring U6425-900 Early Models (see note)

  14.

38356014

Torsion Spring U6445-900 U6451-900 U6451

  15.

34125004

Retainer Control

  15.

21447242

Screw (2) Cable Retainer Mounting

  16.

43124015

Power Drive Assembly 43124016

  17.

38528034

V Belt Agitator

  17.

40201200

Windtunnel V Belt Power Drive 1 pack

  18.

42246136

Agitator Housing (Includes items 24 25 31) (see note)

  18.

37243014

Agitator Housing With Furniture Guard Models produced after 9/98 (Includes 31)

  19.

36172007

Hose Clamp

  20.

21479446

Screw Hose Clamp

  20.

37254186

Bag Door

  21.

39511004

Litter Picker

  21.

39511008

Litter Picker U6430-900 U6432-900  U6446-900 6439-900

  22.

42245029

Bottom Plate (Includes item 31)

  23.

48414069

Agitator Assembly Complete 48414069 91001201

  24.

21479446

Screw

  25.

37243026

Dust Cover Nozzle (Early Models produced 9/98 and earlier)

  25.

37243013

Duct Cover Nozzle (Late Models produced after 9/98)

  26.

21447242

Screw Transmission to Main Body

  27.

21447228

Screw

  28.

21447121

Screw Bottom Plate

  29.

21751010

Screw (Special)

  30.

36128002

Washer (Special)

  31.

38781053

Agitator Pulley Seal

  33.

38537013

Drive Pulley
