Once you locate the part number below, past it in the white search field and
click on the search button for price and availability.

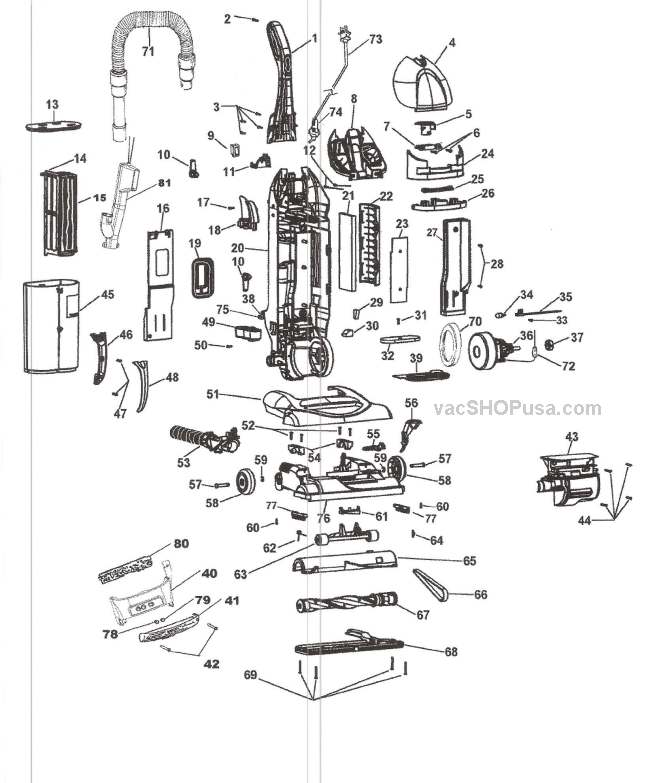

| The below Hoover part Schematic is for the following Hoover
Wind tunnel Windtunnel Model U5753960
To look up the
price of this Genuine part or order online please enter the
part number in the search field below.
|
|
|
|
|
Hoover Model Number: |
Hoover U5753960 |
|
Image |
Key |
Part Number
|
Description |
|
|
|
39466069
|
UPPER HANDLE-ABE |
|
|
2 |
21447236
|
SCREW |
|
|
3 |
21447072
|
SCREW |
|
|
4 |
37257254
|
TOOL DOOR-WT BGLS |
|
|
5 |
92001024
|
LID LATCH/CAM-AGR |
|
|
6 |
21447242
|
SCREW-SELF TAPPING |
|
|
7 |
36155013
|
LATCH SLEEVE-ABE |
|
|
8 |
36433146
|
TOOL HOLDER WITHT-ABE |
|
|
9 |
28161067
|
SWITCH-WT-.025 TERM |
|
|
10 |
3944201P
|
CORD WRAP |
|
|
11 |
36923004
|
SWITCH ROD SUPPORT-ABE |
|
|
12 |
21447246
|
SCREW-SV 3.125" |
|
|
13 |
37249042
|
DIRT CUP LlD-ABE |
|
|
14 |
92001025
|
PRE FILTER CARTRIDGE ASSEM-ABR |
|
|
15 |
40140201
|
CARTRIDGE FILTER |
|
|
16 |
37258121
|
WIRE CHANNEL COVER-ABE |
|
|
17 |
21447242
|
SCREW-SELF TAPPING |
|
|
18 |
36433148
|
WAND/HOSE HOLDER-UPPER-ABE |
|
|
19 |
38783027
|
INLET SEAL-AG |
|
|
20 |
42259027
|
DIRT CUP HSG-WT BGLS |
|
|
21 |
40110006
|
FINAL FILTER PK |
|
|
22 |
37257289
|
FINAL FILTER DOOR-AFX |
|
|
23 |
34172013
|
MUFFLER FOAM |
|
|
24 |
37258181
|
LATCH COV SHROUD-AHT |
|
|
25 |
37258185
|
CAM SLOT CAP-AHT |
|
|
26 |
38567047
|
LATCH COV-AHT-U5753 |
|
|
27 |
37259016
|
MUFFLER COVER-ABE |
|
|
28 |
21447242
|
SCREW-SELF TAPPING |
|
|
29 |
34131009
|
WIRE CHANNEL FOAM |
|
|
30 |
34131019
|
WIRE OPENING PLUG |
|
|
31 |
21447242
|
SCREW-SELF TAPPING |
|
|
32 |
38762008
|
SECONDARY FILTER |
|
|
33 |
21447072
|
SCREW |
|
|
34 |
27313101
|
LAMP |
|
|
35 |
47173024
|
WIRING HARNESS |
|
|
Image |
Key |
Hoover Part Number
|
Description |
|
|
36 |
43576188
|
MOTOR ASSEM COMPLETE |
|
|
37 |
36322030
|
MOTOR MOUNT-SMALL |
|
|
38 |
21447242
|
SCREW-SELF TAPPING |
|
|
39 |
43615088
|
SEC FILTER RETAINER |
|
|
40 |
37944024
|
EDF COV-COSMIC BL |
|
|
41 |
39383107
|
LENS-CP |
|
|
42 |
21447228
|
SCREW-SELF- TAPPING |
|
|
43 |
37196160
|
MOTOR COVER-WT BGLS |
|
|
44 |
21447230
|
SCREW-SELF TAPPING-F |
|
|
45 |
38775077
|
DIRT CUP-WT BAG LESS-SERVICE |
|
|
46 |
39457018
|
HANDLE-DIRT CUP-ABE |
|
|
47 |
21447045
|
EXP-SCREW-SELF TAPPI |
|
|
48 |
39457049
|
DIRT CUP HANDLE COVER-AHT |
|
|
49 |
36433147
|
WAND HOLDER-LOWER-ABE |
|
|
50 |
21447242
|
SCREW-SELF TAPPING |
|
|
51 |
37253419
|
HOOD-COSMIC BLUE |
|
|
52 |
21447072
|
SCREW |
|
|
53 |
43516010
|
VALVE ASSEMBLY replaced # 43516009 |
|
|
54 |
36131094
|
TRUNNION COVER-A BE |
|
|
55 |
40309004
|
NOZZLE ADJ LEVER & CAM KIT |
|
|
56 |
38458043
|
HANDLE RELEASE LEVER |
|
|
57 |
32434007
|
REAR AXLE |
|
|
58 |
38522077
|
REAR WHEEL |
|
|
59 |
160017-
|
LOCK RING |
|
|
60 |
21447228
|
SCREW-SELF-TAPPING |
|
|
61 |
40309004
|
NOZZLE ADJ LEVER & CAM KIT |
|
|
62 |
38355010
|
TORSION SPRING |
|
|
63 |
92001026
|
FRONT WHEEL ASS EM COMPLETE |
|
|
64 |
013261AY
|
RIB SHOES |
|
|
65 |
40309026
|
BTM PLATE/DUCT 15 SERVICE |
|
|
66 |
38528033
|
BELT |
|
|
67 |
48414115
|
AGIT A TOR-15-SERVICE |
|
|
68 |
40309026
|
BTM PLATE/DUCT 15 SERVICE |
|
|
69 |
21447121
|
SCREW |
|
|
70 |
36322035
|
MOTOR MOUNT-LRG |
|
|
71 |
43491051
|
HOSE-WT BGLS |
|
|
72 |
28382093
|
THERMALPROTECTOR-WT |
|
|
73 |
46383331
|
CORD-35' |
|
|
Image |
Key |
Hoover Part Number
|
Description |
|
|
74 |
36215028
|
CORD PROTECTOR-WTBGL |
|
|
75 |
36171035
|
HOSE CLAMP-WT BAGLES |
|
|
76 |
37242128
|
MAIN BODY-WT BGLS |
|
|
77 |
39511004
|
LITTER PICKER |
|
|
78 |
27352031
|
SNAP IN LENS-GREEN |
|
|
79 |
27352030
|
SNAP IN LENS-RED |
|
|
80 |
46851031
|
EDF PRINTED CIRCUIT BOARD |
|
|
81 |
43486014
|
DIRT DUCT ASSEMW/MIC SERVICE |
|
|
82 |
57363003
|
AIR FRESH TABLET(24) |
|
|
82 |
43434043
|
HOSE-DLX-20'-8T-WTBL |
|
|
82 |
38614044
|
FURNITURE NOZZLE-AGR |
|
|
82 |
38634078
|
EXTENSION TUBE-AG |
|
|
82 |
38617031
|
CREVICE TOOL-LONG-AGR |
|
|
83 |
49129027
|
TURBINE HAND TOOL |
|
|
83 |
43414195
|
DUSTING BRUSH ASSEMBLY-AGR |
|
|
