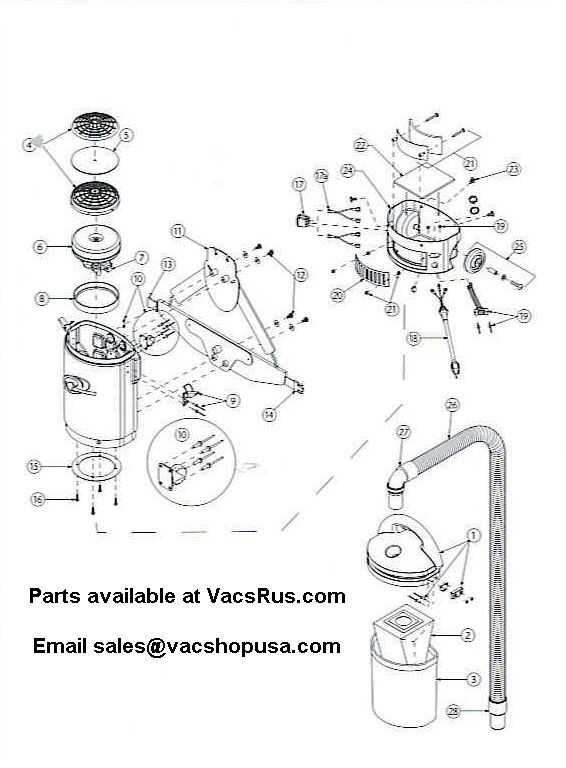

| Index |
Part No. |
Description |
|
|
1
|
103277
|
Lid Assembly: 1 Lid, 2 Latch Strikes, 2 Bumpers, 4 Pop Rivets, 4
Washers
|
1 set
|
|
2
|
103227
|
454 sq. in. Intercept Micro Filter Bags
|
10/pack
|
|
3
|
102063
|
Micro Cloth Filter
|
1 each
|
|
4
|
100030
|
Dome Filter w/Foam Media
|
1 set
|
| |
100343
|
Foam Media for Dome Filter
|
1 each
|
| |
101220
|
High Filtration Disc (Optional)
|
2/pack
|
|
5
|
100422
|
928 Watt Motor/Fan w/Crimps (Li'l Hummer II)
|
1 each
|
| |
103296
|
802 Watt Motor/Fan w/Crimps (Sierra)
|
1 each
|
|
6
|
100424
|
Replacement Carbon Brush Set for 928 Watt Motor (Li'l Hummer II)
|
1 set
|
| |
101531
|
Replacement Carbon Brush Set for 802 Watt Motor (Sierra)
|
1 set
|
|
7
|
101098
|
Motor Seal
|
1 each
|
|
8
|
103270
|
Draw Latch Assembly: 1 Latch, 2 Rivets, 2 Washers
|
1 set
|
|
9
|
103271
|
Swivel Caster Assembly: 1 Caster, 4 Rivets, 4 Washers
|
1 set
|
|
10
|
103281
|
Two-piece Backplate System Complete
|
1 set
|
| |
103005
|
Shoulder Strap Assembly: 2 Shoulder Straps w/Sternum Strap, 2
Buckles
|
1 set
|
| |
100358
|
Shoulder Strap Plastic Adjustment Buckle (Top)
|
1 each
|
| |
100357
|
Shoulder Strap Plastic Adjustment Buckle (Bottom)
|
1 each
|
| |
103283
|
Waist Belt
|
1 each
|
| |
100375
|
Barrel Nut Connection Set (Replacement)
|
1 set
|
|
11
|
103282
|
Backplate Connection Set: 4 Screws (2 Long/2 Short), 4 Washers
|
1 set
|
|
12
|
100364
|
Waist Belt Keeper
|
1 each
|
|
13
|
100363
|
Waist Belt Latch
|
1 each
|
|
14
|
102181
|
Motor Plate
|
1 each
|
|
15
|
100378
|
Motor Plate Connection Screw Set: 4 Screws
|
1 set
|
|
16
|
103198
|
Double Pole On/Off Switch
|
1 each
|
|
16a
|
101760
|
Wire Splitter
|
1 each
|
|
17
|
103181
|
Power Cord (18" 16/3) Assembly Complete w/Strain Relief
w/Locknut
|
1 set
|
| |
|
and Washer Pro Team (Li'l Hummer II)
|
|
| |
101861
|
Power Cord (35' 18/2) Assembly Complete w/Strain Relief w/Locknut
|
1 set
|
| |
|
and Washer (Sierra)
|
|
|
18
|
103273
|
Powerhead Receptacle Assembly (Li'l Hummer II):
|
1 each
|
| |
|
1 Three-wire Receptacle, 2 Rivets, 2 Washers
|
|
| |
103272
|
Powerhead Receptacle Assembly (Sierra):
|
1 each
|
| |
|
1 Two-wire Receptacle, 2 Rivets, 2 Washers
|
|
|
19
|
102052
|
Exhaust Louver
|
1 each
|
|
20
|
103274
|
Sound/Exhaust Assembly: 2 Nylock Nuts, 2 Hex Nuts w/Washers,
|
1 set
|
| |
|
2 Screws, 1 Small Felt Acoustic Insulator, 1 Exhaust Bracket,
|
|
| |
|
2 Nylon Spacers
|
|
|
21
|
102510
|
Acoustic Insulator, Felt, Large
|
1 each
|
|
22
|
103275
|
Bottom Cap Screw Kit: 4 Screws
|
1set
|
|
23
|
103182
|
Bottom Cap (Black) w/Wheel Wells (Li'l Hummer II)
|
1 each
|
|
24
|
103015
|
Bottom Cap (Black) w/Hole for Power Receptacle (Sierra)
|
1 each
|
|
25
|
103278
|
Rear Wheel Assembly (Li'l Hummer II): 2 Wheels, 2 Axle Sleeves,
|
1 set
|
| |
|
2 Axle Washers, 2 Axle Screws
|
|
|
26
|
103048
|
Static Dissipating Hose w/Cuffs (Black) 1 1/2"(Li'l
Hummer II)
|
1 each
|
| |
103237
|
Static Dissipating Hose w/Cuffs (Black) 1 1/4" (Sierra)
|
1 each
|
|
27
|
101928
|
Replacement Cuff w/Swivel Elbow (Black) 11/2" (Li'l Hummer
II)
|
1 each
|
| |
102715
|
Replacement Cuff w/Swivel Elbow (Black) 1 1/4" (Sierra)
|
1 each
|
|
28
|
100694
|
Replacement Swivel Cuff (Black) 11/2" (Li'l Hummer II)
|
1 each
|
| |
103279
|
Replacement Swivel Cuff (Black) 1 W (Sierra)
|
1 each
|
