To look up the price of this Genuine Sanitaire Model SC888 part or order online please click on the part number. If the number is not an active link that is highlighted in Blue please email us at chicago@thevacshop.com and we can add it to our on line database.

Enter Search Phrase or Part Number:

Limit Results To:

Item No.	Part No.	Description
1.	53143	Shoulder Screw (Pkg. of 10 1 Used)
2.	26833-1	Adjustment Knob
3.	12600-22	Lens
4.	60192-1	Wire Splioe (Pkg. of 5 3 Used)
5.	37514	Headlight Socket Assembly
6.	53238-14	Motor Mounting Screw (Pkg. of 10 3 Used)
7.	56379	Air Inlet Duct Assembly (RH)
8.	49052-3	Foam Tape
9.	25461A	Shield
10.	55296	Wire & Terminal Assembly
11.	53213-4	Nut (Pkg. of TO 1 Used)
12.	53097	Foot Pedal Spring (Pkg. of 10 1 Used)
13.	53238-14	Adjustment Screw (Pkg. of 10 4 Used)
14.	53140	Clamp & Screw Assembly (Pkg. of 6 2 Used)
15.	55726-18	Base Assembly
16.	24964A-1	Cam (RH)
17.	24965A-1	Cam (LH)
18.	53118	Rivet Cam (Pkg. of 10 2 Used)
19.	53133	Washer (Pkg. of 10 2 Used)
20.	53117	Hood Spring (Pkg. of 10 2 Used)
21.	30517	Motor Seal Gasket
22.	53238-14	Screw (Pkg. of 10 2 Used)
23.	53122	Strain Relief Bushing (Pkg. of 10 1 Used)
24.	54098-1	Hood & Nameplate
25.	37654	Nameplate
26.	55754	Decal
27.	36409-13	Push Switch
28.	53102	Switch Washer (Pkg. of 10 1 Used)
29.	55446	Switch Nut
30.	54173-1	Wire & Terminal Assembly
3J.	40009A	Headlight
32.	53228-2	Clip Screw (Pkg. of 10 1 Used)
33.	53160	Cable Clamp (Pkg. of 5 1 Used)
34.	53238-29	Motor Screw (Pkg. of 10 1 Used)
35.	54352-3	Motor Assembly
36.	56380	Air Inlet Duct Assembly (LH)
37.	49052-3	Foam Tape
35.	30517	Motor Seal Gasket
39.	53228-2	Screw (Pkg. of 10 1 Used)
40.	24834A-1	Foot Pedal
41.	37034	Adapter Retainer Spring
42.	53228-2	Retainer Screw (Pkg. of 10 1 Used)
43.	36263	Wheel Cover
44.	52334	Fan Chamber Cover Replacement Kit
45.	13770-1	Fan Chamber Cover

Item No. Part No. Description

1. 27564-1 Furniture Guard

2. 53121 Push nut (Pkg. of 10 1 Used)

3. 26242-1 Rear Wheel

4. 53110 Wheel Washer (Pkg. of 10 2 Used)

5. 53238-11 Screw (Pkg. of 10 4 Used)

6. 35947A Front Axle

7. 30563A Belt

8. 54555 Disturbulator Assembly Complete

9. 53158 Locknut (Pkg. of 10 2 Used)

10. 26059A Cap Cover

11. 26058A Disturbutator Cap

12. 35728A-1 Cover Plate

13. 53114 Bearing

14. 35663A Shaft

15. 46538 Foam Tape

16. ** 25922-1 Bottom Plate Assembly

17. 37183 Rear Axle

18. 53201 Axle Clamp

19. 53076-2 Axle Spring (Pkg. of 6 1 Used)

20. 35859A-1 Front Wheel

21. 52140 Bristle Strip Set

22. 48159 Pulley Replacement

23. 53115 Tolerance Ring (Pkg. of 10 2 Used)

*** 60161 Wheel & Axle Assembly

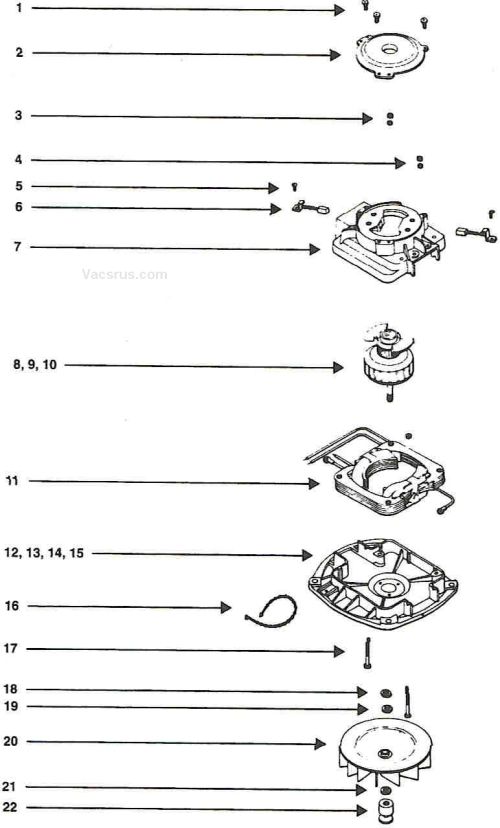

Item No. Part No. Description

1. 53138 Retainer Screw (Pkg. of 10 3 Used)

2. 20217E Retainer Assembly

3. 53213-4 Hex Nut (Pkg. of 10 4 Used)

4. 53222-3 Lock Washer (Pkg. of 10)

5. 53219-2 Brush Screw (Pkg. of 10)

6. 30478 Motor Brush Assembly (2)

7. 54396 Motor Cover

8. * 54425-3 Arm Fan & Bearing Assembly

9. 53088-2 Bearing (Pkg. of 5 1 Used)

10. 30474A Fan

11. 53441-2 Field Assembly

12. ** 54169-1 Motor Base Assembly

13. 54412 Bearing & Retainer Assembly

14. 53088-2 Bearing (Pkg. of 5 1 Used)

15. 53187-1 Rivet (Pkg. of 10 3 Used)

16. 46713-1 Tie Fastener

17. 53142 Thread Screw (Pkg. of 10 1 Used)

18. 53188-1 Washer (Pkg. of 10 1 Used)

19. 53148 Fan Washer (Pkg. of 10 1 Used)

20. 12988 Fan

21. 53148 Fan Washer (Pkg. of 10 1 Used)

22. 37012-2 Pulley

* Item 8 Includes Items 9 & 10 ** Item 12 Includes Items 13,14, & 15

Item No. Part No. Description

1. 35293-8 Handle Grip

2. 53574-1 Cord Retainer

3. 53198-1 Screw & Nut Assembly (Pkg. of 6 1 Used)

4. 52370-12 Supply Cord

5. 53238-11 Screw (Pkg. of 10 1 Used)

6. 38183-1 Handle Socket Assembly

7. 53213-5 Nut (Pkg. of 10 2 Used)

8. 53145 Bolt (Pkg. of 10 2 Used)

9. 53077 Strain Relief Spring (Pkg. of 5)

10. * 25329-20 Upper Handle Assembly

11. 12637-8 Lower Handle Tube

12. 53198-1 Screw & Nut Assembly (Pkg. of 6 1 Used)

13. 53238-29 Screw (Pkg. of 10 2 Used)

14. 36439 Handle Socket Shield

Item 10 Includes Item 1

Item No.	Part No.	Description
1.	53506-9	Outer Bag Assembly Complete
	52320 3pk	Style F&G Regular Filtration Sanitaire Bags for Models SS888A, SC888B, SC888C, SC888D, SC888E, SC888F, SC888G, SC888H
	57695 3pk	Style F&G Filteraire Filtration Sanitaire Bags for Models SC888J
	63213 5pk	Sanitaire Premium allergen filtration ST paper bags with odor eliminating Arm & Hammer baking soda inside. Eliminates odors caused by mold, bacteria and fungi. For Sanitaire Models SC678A, SC688A, SC883A, SC888J.
2.	54174-1	Bag Adapter
3	47722	Spring
4.	49461a	Hardware Package
	Not Illustrated 48410	Garter Spring
