Royal part listing / price list
To
look up the price of this Genuine Royal part or order online
please click on the part number. If the number is not an active
link that is highlighted in Blue please
email us at sales@vacshopusa.com
and we can add it to our on line database. |
|

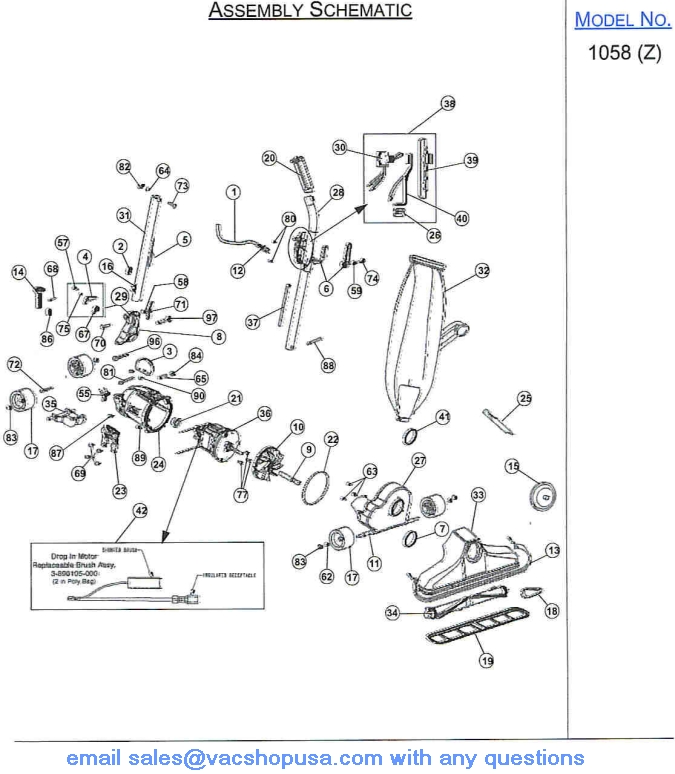

part listing / price list
|
Royal model No.
|
|
Item
|
Part Number
|
Model's To Fit
|
Part Description
|
|
1058(Z) & 1058
|
|
1
|
1061136AUO
|
1058, 1058Z
|
CORD - 50' - ORANGE
|
|
2
|
1230324000
|
1058, 1058Z
|
GROMMET
|
|
3
|
1133716000
|
1058, 1058Z
|
HANDLE STOP PLATE
|
|
4
|
1-133737-000
|
1058, 1058Z
|
HANDLE FORK LATCH
|
|
5
|
1-259316-000
|
1058, 1058Z
|
CORD HOOK - LOWER
|
|
6
|
1-259317-000
|
1058, 1058Z
|
CORD HOOK - UPPER
|
| |
1-259319-000
|
1058, 1058Z
|
CORD HOOK - UPPER quick release
|
|
7
|
1-285427-000
|
1058, 1058Z
|
GASKET, NOZZLE SEALING
|
|
8
|
1-285704-000
|
1058, 1058Z
|
HANDLE FORK - POLISHED
|
| |
1-028590-000
|
1058, 1058Z
|
HANDLE FORK - revised- Includes Fork, Lower handle tube,
Nut & Bolt
|
|
9
|
1-380262-000
|
1058, 1058Z
|
SHAFT EXTENSION
|
|
10
|
1-608005-000
|
1058, 1058Z
|
FAN / slip on
|
|
11
|
1-618101-000
|
1058, 1058Z
|
AXLE STUD
|
|
12
|
1-611305-000
|
1058, 1058Z
|
STRAIN RELIEF - POWER CORD
|
|
13
|
1-618201-BOO
|
1058, 1058Z
|
BUMPER - GREY
|
| |
1-618201-600
|
1058, 1058Z
|
BUMPER - BLACK
|
|
14
|
1-690715-000
|
1058
|
RELEASE PEDAL
|
| |
1-870012-000
|
1058Z
|
ADJUSTMENT BOLT
|
|
15
|
1-670744-600
|
1058
|
NOZZLE PLUG - BLACK
|
| |
2-870169-600
|
1058Z
|
ADJUST-O-RITE PLATE with KNOB
|
|
16
|
1-670844-600
|
1058, 1058Z
|
CORD CLIP
|
|
17
|
1-671705-000
|
1058, 1058Z
|
WHEEL
|
|
18
|
1-672260-001
|
1058, 1058Z
|
BELT
|
|
19
|
1-692270-000
|
1058, 1058Z
|
NOZZLE GUARD - 18"
|
|
20
|
1-880314-600
|
1058, 1058Z
|
HANDLE GRIP - black
|
|
21
|
1-870006-600
|
1058, 1058Z
|
GROMMET, MOTOR
|
|
22
|
1-870024-600
|
1058, 1058Z
|
MOTOR HOUSING O-RING
|
|
23
|
1-870130-POO
|
1058, 1058Z
|
SIDE PLATE
|
|
24
|
1-871201-000
|
1058
|
MOTOR HOUSING - POLISHED
|
| |
1-870201-000
|
1058Z
|
MOTOR HOUSING - POLISHED
|
|
25
|
1-880262-000
|
1058, 1058Z
|
BELT LIFTER
|
|
26
|
1-880304-000
|
1058, 1058Z
|
STRAIN RELIEF - INTERNAL CORD
|
|
27
|
2-670118-000
|
1058, 1058Z
|
FAN CASE ASSEMBLY
|
|
28
|
9-891052-000
|
1058, 1058Z
|
UPPER HANDLE - incl #6, #20 - rivit cord hook
|
| |
2-891051-600
|
1058, 1058Z
|
UPPER HANDLE - incl #6, #20 -QUICK RELEASE CORD HOOK
|
|
|
ROYAL metal upright
|
Royal model No.
|
|
|
|
part listing / price list
|
model No. 1058(Z)
|
|
Item
|
Part Number
|
Model's to Fit
|
Part Description
|
|
29
|
2-028580-000
|
1058, 1058Z
|
HANDLE FORK & LATCH ASSEMBLY replaced BY 2-028590-000
& 2-208590-000
|
| |
2-028590-000
|
1058, 1058Z
|
HANDLE FORK & LATCH ASSEMBLY revised
|
|
30
|
1-163309-000
|
1058, 1058Z
|
SWITCH
|
|
31
|
2-891061-000
|
1058, 1058Z
|
LOWER HANDLE TUBE - incl #5 & #16
|
| |
2-208590-000
|
1058, 1058Z
|
LOWER HANDLE TUBE - INCL #5 & #1 6 REVISED
|
|
32
|
2-066248-BGO
|
1058
|
SHAKE OUT BAG ASSEMBLY -ORANGE
|
| |
2-066242-AU1
|
1058, 1058Z
|
HINGED BAG ASSEMBLY - comp. w/ zipper
orange
|
|
33
|
2-381026-BOO
|
1058, 1058Z
|
NOZZLE ASSEMBLY - includes #13
|
|
34
|
2-692225-000
|
1058, 1058Z
|
BRUSH ROLL ASSEMBLY
|
|
35
|
2-670007-000
|
1058
|
REAR WHEEL FORK/AXLE ASSEMBLY
|
| |
2-028574-000
|
1058Z
|
REAR WHEEL FORK/AXLE ASSEMBLY
|
|
36
|
2-970102-000
|
1058, 1058Z
|
MOTOR w/REPLACEABLE BRUSHES - 7 amp
|
|
37
|
3-870323-600
|
1058, 1058Z
|
SHORT CORD & LUG ASSEMBLY
|
|
38
|
2-060837-000
|
1058, 1058Z
|
SWITCH & PLATE ASSEMBLY
|
|
39
|
1-608303-000
|
1058, 1058Z
|
SWITCH PLATE
|
|
40
|
2-031103-000
|
1058, 1058Z
|
STRAIN RELIEF STAMPING
|
|
41
|
1-601407-000
|
1058, 1058Z
|
RUBBER INLET GASKET
|
|
42
|
3-890105-000
|
1058, 1058Z
|
CARBON BRUSH pkg - drop in motors
|
| |
3-970109-000
|
1058, 1058Z
|
CARBON BRUSH pkg -johnson drop in motors
|
|
|
55
|
1-003008-000
|
All Models
|
WHEEL FORK SPRING
|
|
56
|
1-003009-000
|
N/A
|
ROD SPRING
|
|
57
|
1-003022-000
|
All Models
|
LATCH RETAINER SCREW
|
| |
1-211321-000
|
All Models
|
LATCH SCREW - REVISED
|
|
58
|
1-003311-000
|
All Models
|
WASHER ADAPTOR CLAMP SCREW
|
|
59
|
1-003884-000
|
All Models
|
SPRING
|
|
60
|
1-006318-000
|
N/A/
|
LOCK WASHER
|
|
61
|
1-004723-000
|
All Models
|
HANDLE FORK SPRING
|
|
62
|
1-005138-000
|
All Models
|
WHEEL RETAINER WASHER
|
|
63
|
1-023309-000
|
All Models
|
SCREW #10-24X3/4"
|
|
64
|
1-074330-000
|
All Models
|
LOCK WASHER
|
|
65
|
1-110773-000
|
All Models
|
MOTOR HOUSING INSERT
|
|
66
|
1-110775-000
|
N/A
|
ROD ADJUSTMENT SLEEVE
|
|
67
|
1-133738-000
|
All Models
|
HANDLE LATCH SPRING
|
|
68
|
1-UA0305-000
|
1028, 1028Z, 1058Z
|
SCREW #6-32X3/8'
|
|
69
|
1-186012-000
|
All Models
|
SELF TAPPING SCREW
|
|
70
|
1-230713-000
|
All Models
|
CARRIAGE BOLT, HANDLE FOR NEW VERSION ORDER
#96
|
|
71
|
1-285720-000
|
All Models
|
LARGE WINGNUT FOR NEW VERSION ORDER #97
|
|
72
|
1-311031-000
|
All Models
|
REAR AXEL SCREW
|
|
73
|
1-074329-000
|
All Models
|
SQUARE NECK BOLT
|
|
74
|
1-597743-000
|
All Models
|
SCREW
|
|
75
|
1-601772-000
|
All Models
|
LATCH SPACER
|
|
76
|
1-606210-000
|
N/A
|
HEADLIGHT SPRING CLIP
|
|
77
|
1-670013-000
|
All Models
|
MOTOR PLATE SCREW
|
|
78
|
1-670705-000
|
1018, 1025, 1030, 1038, 089000
|
SPRING PIN
|
|
79
|
1-672009-000
|
1018, 1025, 1030, 1038, 1058, 089000
|
RELEASE PEDAL SPRING
|
|
80
|
1-801701-000
|
All Models
|
SCREW
|
|
81
|
1-801708-000
|
All Models
|
HANDLE FORK BOLT
|
|
82
|
1-801715-000
|
All Models
|
NUT W/NYLON INSERT
|
|
83
|
1-801711-000
|
All Models
|
WHEEL RETAINER CAP
|
|
84
|
1-801714-000
|
All Models
|
NUT
|
|
85
|
1-802244-000
|
N/A
|
SCREW
|
|
86
|
1-870013-000
|
1028, 1028Z, 1058Z
|
ADJUSTER SPRING
|
|
|
Part Number
|
Model's To Fit
|
Part Description
|
|
87
|
1-880707-000
|
1018, 1025, 1030, 1038, 089000
|
SCREW #6-32X1/4"
|
|
88
|
1-884708-000
|
All Models
|
EYE BOLT
|
|
89
|
1-980743-000
|
All Models
|
THREAD FORMING SCREW
|
|
90
|
1-990104-000
|
All Models
|
SCREW #10-24X5/8"
|
|
91
|
1-996011-000
|
N/A
|
ADJUSTER ROD
|
|
92
|
1-996101-000
|
N/A
|
RETAINING PIN
|
|
93
|
1-996711-000
|
N/A
|
ERING
|
|
94
|
1-133054-000
|
N/A
|
SCREW
|
|
95
|
1-130008-BOO
|
1018, 1025, 1030, 1038, 089000
|
COVER, FOOT ADJUSTMENT LEVER
|
|
96
|
1-700132-000
|
All Models
|
HANDLE FORK SCREW - MALE
|
|
97
|
1-700133-000
|
All Models
|
HANDLE FORK SCREW - FEMALE
|
|
