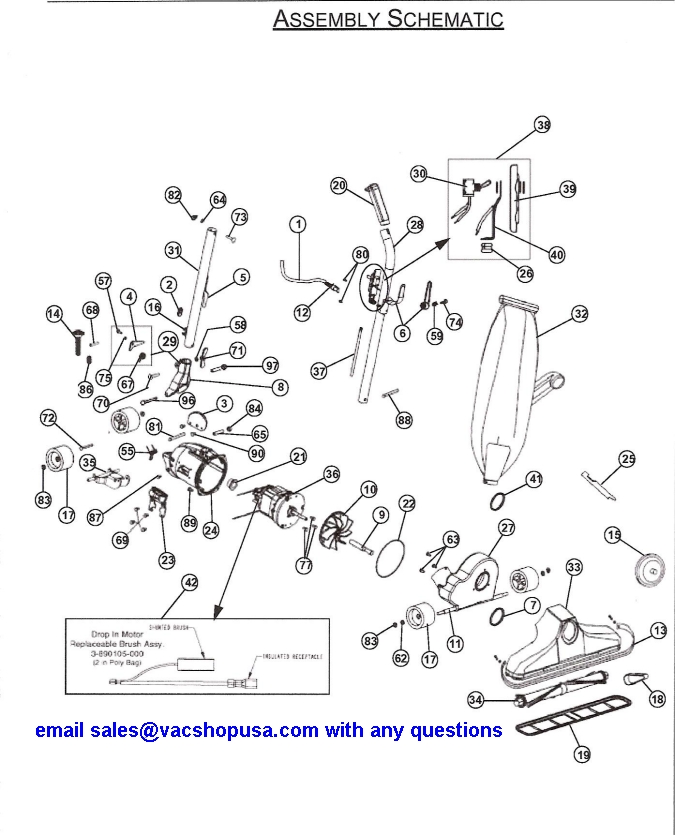

Royal Model 1028Z part listing / price list
To look up the price of this Genuine Royal part or order online please enter the part number in the search field below.

Advanced Search:
Enter  Part Number to view price and availability:




Item

Part Number

Model's To Fit

Part Description

1

1061136AU0

1028, 1028Z

CORD - 50' -3 Wire

2

1230324000

1028, 1028Z

GROMME

3

1133716000

1028, 1028Z

HANDLE STOP PLATE

4

1133739B00

1028, 1028Z

HANDLE RELASE LEVER

5

1259316000

1028, 1028Z

CORD HOOK - LOWER

6

1259317000

1028, 1028Z

CORD HOOK - UPPER RIVITED



1259319000

1028, 1028Z

CORD HOOK - UPPER QUICK RELEASE

7

1285427000

1028, 1028Z

GASKET, NOZZLE SEALING

8

1285704100

1028, 1028Z

HANDLE FORK

ORDER 1028590000



1028590000

1028, 1028Z

HANDLE FORK - REVISED

9

1380261000

1028, 1028Z

SHAFT EXTENSION

10

1608005000

1028, 1028Z

FAN I SLIP ON

11

1611101000

1028, 1028Z

AXLE STUD

12

1611305000

1028, 1028Z

STRAIN RELIEF - POWER CORD

13

1801201B00

1028, 1028Z

BUMPER - GREY



1801201600

1028, 1028Z

BUMPER - BLACK

14

1870012000

1028, 1028Z

ADJUSTMENT BOLT

15

2870169600

1028, 1028Z

ADJUST-O-RITE PLATE WITH KNOB - BLACK

16

1670844600

1028, 1028Z

CORD CLIP

17

1671705000

1028, 1028Z

WHEEL

18

1672260001

1028, 1028Z

BELT

19

1672270000

1028, 1028Z

NOZZLE GUARD 14"

20

1880314600

1028, 1028Z

HANDLE GRIP - BLACK

21

1870006600

1028, 1028Z

GROMMET, MOTOR

22

1870024600

1028, 1028Z

MOTOR HOUSING O-RING

23

1870130P00

1028, 1028Z

SIDE PLATE

24

1870201000

1028, 1028Z

MOTOR HOUSING

25

1880262000

1028, 1028Z

BELT LIFTER

26

1880304000

1028, 1028Z

STRAIN RELIEF - INTERNAL CORD

27

2670116000

1028, 1028Z

FANCASE ASSEMBLY - POLISHED

28

9891052000

1028, 1028Z

UPPER HANDLE - INCL #6, #20 - RIVIT CORD HOOK



2891051600

1028, 1028Z

UPPER HANDLE - INCL #6, #20 -







QUICK RELEASE CORD HOOK

29

2028580000

1028, 1028Z

HANDLE FORK & LATCH ASSEMBLY







REPLACED BY 2028590000 & 2208590000



2028590000

1028, 1028Z

HANDLE FORK & LATCH ASSEMBLY REVISED



Item

Part Number

Model's To Fit

Part Description

30

1163309000

1028, 1028Z

SWITCH

31

2891061000

1028, 1028Z

LOWER HANDLE TUBE - INCLS # 5, #16



2208590000

1028, 1028Z

LOWER HANDLE TUBE - INCL #5, #16 REVISED

32

2066248BG0

1028

SHAKE OUT BAG ASSEMBLY - ORANGE



2066242AU1

1028Z

ZIPPER HINGED BAG ASSEMBL Y - ORANGE

33

9061126B00

1028, 1028Z

NOZZLE ASSEMBL Y - INCLS #13

34

2673273000

1028, 1028Z

BRUSH ROLL ASSEMBL Y

35

2028574000

1028, 1028Z

REAR WHEEL FORK/AXLE ASSEMBLY

36

2970102000

1028, 1028Z

MOTOR w/REPLACEABLE BRUSHES - 7 AMP

37

3870323600

1028, 1028Z

SHORT CORD & LUG ASSEMBL Y

38

2060837000

1028, 1028Z

SWITCH & PLATE ASSEMBLY

39

1608303000

1028, 1028Z

SWITCH PLATE

40

2031103000

1028, 1028Z

STRAIN RELIEF STAMPING

41

1601407000

1028, 1028Z

RUBBER INLET GASKET

42

3890105000

1028, 1028Z

CARBON BRUSH PKG - DROP IN MOTORS



3970109000

1028, 1028Z

CARBON BRUSH PKG - JOHNSON DROP IN

Item

Part Number

Model's To Fit

Part Description

55

1003008000

ALL MODELS

WHEEL FORK SPRING

56

1003009000

N/A

ROD SPRING

57

1003022000

ALL MODELS

LATCH RETAINER SCREW



1211321000

ALL MODELS

LATCH RETAINER SCREW - REVISED

58

1003311000

ALL MODELS

WASHER ADAPTOR CLAMP SCREW





- HANDLE FORK

59

1003884000

ALL MODELS

SPRING - UPPER CORD HOOK QUICK RELEASE

60

1006318000

N/A

LOCK WASHER

61

1004723000

ALL MODELS

HANDLE FORK SPRING

62

1005138000

ALL MODELS

WHEEL RETAINER WASHER

63

1023309000

ALL MODELS

SCREW #10-24 X 3/4" - FAN CASE

64

1074330000

ALL MODELS

LOCK WASHER - HANDLE TUBE

65

1110773000

ALL MODELS

MOTOR HOUSING INSERT

66

1110775000

N/A

ROD ADJUSTMENT SLEEVE - SCREW IN

67

1133738000

ALL MODELS

HANDLE LATCH SPRING

68

1 UA0305000

1028, 1028Z, 1058Z

SCREW #6-32 X 3/8' - ADJUSTER BOLT

69

1186012000

ALL MODELS

SELF TAPPING SCREW - SIDE PLATE

70

1230713000

ALL MODELS

CARRIAGE SOL T, HANDLE







FOR NEW VERSION ORDER #96

71

1285720000

ALL MODELS

LARGE WINGNUT







FOR NEW VERSION ORDER #97

72

1311031000

ALL MODELS

REAR AXEL SCREW

73

1074329000

ALL MODELS

SOL T - HANDLE TUBE I CURVED HEAD

74

1597743000

ALL MODELS

SCREW - CORD HOOK QUICK RELEASE

75

1601772000

ALL MODELS

LATCH SPACER

76

1606210000

N/A

HEADLIGHT SPRING CLIP

77

1670013000

ALL MODELS

MOTOR PLATE SCREW

78

1670705000

1018, 1018Z, 1025,

SPRING PIN - RELEASE PEDAL





1030, 1030Z, 1058,







1 059Z, 1 038, 089000



79

1672009000

1018, 1018Z, 1025,

SPRING - RELEASE PEDAL





1030, 1030Z, 1058,







1 059Z, 1 038, 089000



80

1801701000

ALL MODELS

SCREW - SWITCH PLATE

81

1801708000

ALL MODELS

HANDLE FORK SOL T

82

1801715000

ALL MODELS

NUT W/NYLON INSERT

83

1801711000

ALL MODELS

WHEEL RETAINER CAP

84

1801713000

ALL MODELS

NUT - HANDLE FORK BOLT



Item

Part Number

Model's To Fit

Part Description

85

1802244000

N/A

SCREW

86

1870013000

1028, 1028Z, 1058Z

SPRING - ADJUSTER SOL T

87

1880707000

ALL MODELS

SCREW #6-32 X 1/4" - MOTOR HOUSING

88

1884708000

ALL MODELS

EYE BOLT

89

1980743000

ALL MODELS

THREAD FORMING SCREW - MOTOR HOUSING

90

1990104000

ALL MODELS

SCREW #10-24 X 5/8" - HANDLE STOP PLATE

91

1996011000

N/A

ADJUSTER ROD

92

1996101000

N/A

RETAINING PIN - ADJUSTER ROD

93

1996711000

N/A

E RING - ADJUSTER ROD

94

1133054000

N/A

SCREW

95

1130008BOO

1018, 1025,1030,1058, 1059Z,1038,089000

COVER, FOOT ADJUSTMENT LEVER

96

1700132000

ALL MODELS

HANDLE FORK SCREW - MALE

97

1700133000

ALL MODELS

HANDLE FORK SCREW - FEMALE
