Part Listing / Price List Hoover SHAMPOOER - POLISHER - STEAMER - STEAM VAC Extractor Part Schematic


To look up the price of this Genuine  part or order online please enter the part number in the search field below.

Advanced Search:
Enter  Part Number to view price and availability:

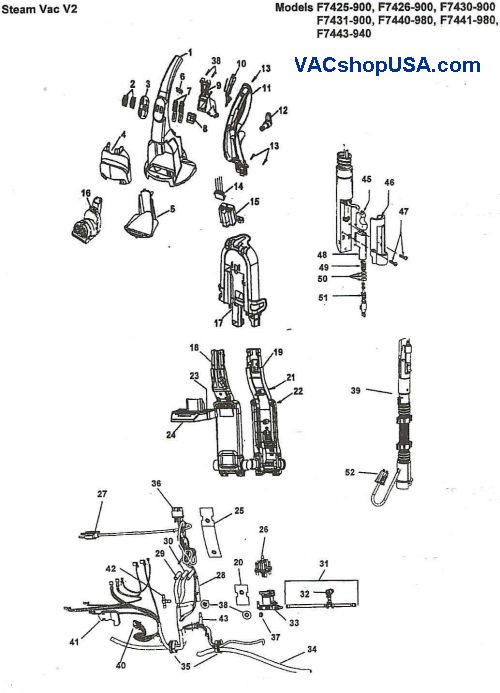

Part Listing / Price List Hoover Schematic

Steam Vac V2

Models F7425-900, F7426-900, F7430-900 F7431-900, F7440-980, F7441-980, F7443-940

Ref No.

Part No.

Description

Ref. No.

Part No.

Description

1.

39466074

Upper Handle Assembly- Front (Includes items 2, 3, 6, 7, 8, 9,

34. 35.

43445004 32456001

Tubing / Elbow Assembly Trunnion Sleeve



10)

36.

46658004

Wiring Harness Assembly

2.

38421101

Switch Button (2)



(Includes items 40 and 41)

3.

52313108

Label

37.

25411014

Hose Clamp .405 ID

4.

37276016

Tool Holder Cover

38.

34264007

Insulator

5.

36433168

Tool Holder

39.

43491045

Hose Assembly

6.

28218051

Switch

40.

28218052

Switch

7.

38458065

Switch Rod (2)

41.

37923036

Switch Cover

8.

28267003

Switch

42.

38681010

T-Connector

9.

46658005

Upper Handle Support / Switch Assem. (Includes Kerns 6, 8, 10 and wiring harness

43. 44. 45. I

68266023 25411017 38433074

Tubing - Fiberglass Hose clamp .250 ID Trigger -AG

10.

36436023 38434030

Support (Only - as shown) Control Lever

46. 47.

37276006 21447239

Wand Cover Screw

11.

39458011

Upper Handle - Rear

48.

43513009

Wand / Valve Assembly

12. 39442047 Cord Wrap 49.  38312019 Spring

13.

21447072 *

Screw

50.

N/A

O-Ring (included with item 51)

14.

N/A

Included with item 9.

51.

43412007

Nozzle / Valve Assembly

15.

37922013

Wire Cover -

52.

43513010

Connector / coupler Sleeve

16.

48439002

Turbine Nozzle - F7425-900, F7426-900, F7430-900, F7431-900,  F7443-900,













16.

48439003

Turbine Nozzle - F7440-980, F7441-980

Items not illustrated:  27479307 Cable Tie

17.

36433167

Tool Caddy



18.

39466076

Lower Handle - Front



19.

39466081

Lower Handle - Rear



20.

34264006

insulator



21.

21447019 *

Screw



22.

21447269

Screw



23.

38764031

Metering Plate -ABE





38764036

Metering Plate - AFS -
F7441-980




25156522

ORing



24.

41423017

Supply Tank Support (Includes items 28, 29, & 30)




41423019

Supply Tank Support (Includes after. Ref: Service Bulletin 2-03



25.

34285001

Insulator



26.

43513013

Pressure Valve Assembly



27.

46583124

Attachment Cord Assembly



28.

66173011

Tubing - 6 3/4"



29.

66173011

Tubing - 6 3/4" (Trim to length)



30.

66173013

Tubing -22 1/4 "Long



31.

43491046

Connector / Tubing Assembly
with Quick Disconnect



32.

43523004

Quick Disconnect Assembly



33.

43582011

Pump Assembly

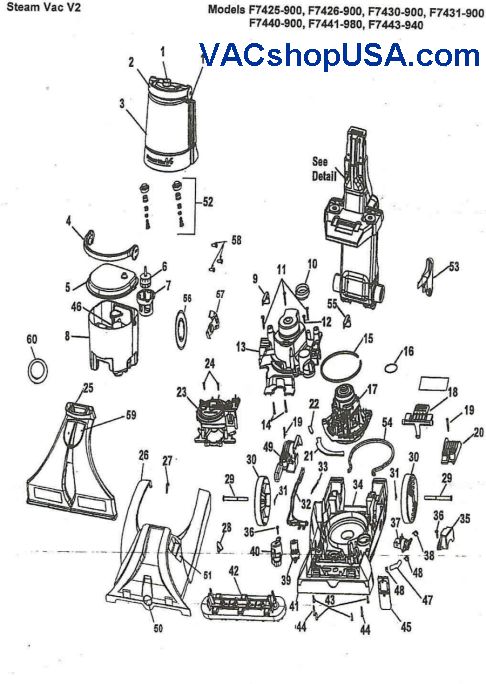

To look up the price of this Genuine  part or order online please enter the part number in the search field below.

Advanced Search:
Enter  Part Number to view price and availability:




Ref.

Part No.

Description

Ref. No.

Part No.

Description

1.

42272138

Threaded Cap Assembly

32.

38458066

Turbine Actual

2.

39457034

Sol. Tank Handle-Ruby-F7425-900

33.

38331006

Spring



39457035

Sol.Tank Handle-Vtolet-F7430-900

34.

37272100

Main Body As;



39457030

Soi.Tank Handte-Lime-F7440-980

35.

37278013

Solenoid Cove



39457031

Sol.Tank Handle-Iris Blue-,

36.

23149002

Screw



F7431-900, F7441-980, F7443-900

37.

25686056

Solution Valve



39457044

SoLTank Handle-AG-F7426-900

38.

25411015

Hose Clamp

3.

42272137

Supply Tank Assembly (incl.item 52)

39.

25686057

Solution Valve



42272142

Supply Tank Assembly - Models produced Jan. 2003 and after. Ref:Service Bulletin 2-03 (incl.item 52)

40.

37278012

Solenoid Cove



41.

37272099

Main Body - Fr



21447217

* Screws - MB F

4,

39457036

Rec. Tank Hdl. F7425-900

42.

48437030

Brush Block As



39457037

Rec. Tank Hdl F7430-900,F7431-900



48437031

Brush Block A;





43.

21447217

* Screw



39457029

Rec. Tank Hdl. F7440-980

44.

21447268

Screw



39457032

Rec. Tank Hdl. F7443-940, F7441-980

45.

43613018

Filter Cassette



46.

38769022

Baffle Wall



39457043

Rec. Tank Hdl. F7426-900

47.

66173011

Tubing - 6 3/4"

5.

42272009

Lid Assembly (Includes items 6 & 7)

48.

25411015

Clamp

6.

43538002

Float

49.

36131116

Trunnion Brack

7.

38719043

Float Retainer

50.

51661020

Medallion

8.



Rec. Tank Assemblies Include items 4, 5, 6, 7, 46

51.

51865029

Brush Speed L



42272083

Recovery Tank Assem (Common )

52,

43513014

Supply Tank V,



38777073

Recovery Tank Assem. - F7443-940



43513015

Supply Tank Vi



38777077

Recovery Tank Assem. - F7426-900



Models produced Jan 2003 and after. Ref: Service Bulletin  02 2003

9.

36153076

Tank Latch-RH-Ruby -F7425-900





36153077

Tank Latch-RH-Violet- F7430-900

53.

36433169

Cord Hose Hook, Lower



36153071

Tank Latch-RH-Lime- F7440-980

54.

38781067

Motor Seal



36153075

Tank Latch-RH-lris Blue F7431-900, F7441-980, F7443-940

55.

36153078

Tank Latch-LH- F7425-900



36153079

Tank Latch-LH- F7430-900



36153081

Tank Latch-RH-AG-F7426-900



36153070

Tank Latch-LH- F7440-980

10.

38784063

Standpipe Seal



36153074

Tank Latch-LH-Blue  F7431-900, F7441-980, F7443-940

11.

23149004

Tapping Screw & Washer



12.

23149002

Screw



36153080

Tank Latch-LH- F7426-900

13.

37196167

Motor Cover

56.

31339007

Wheel Disc Del

14.

21479438

* Screw

57.

43143047

Actuation Asset

15.

34113004

Motor Seal

58.

21447263

* Screw

16.

25156524

O-Ring

59.

37276021

Door - Tool Po

17.

43576197

Motor Assembly - (also order item 21)

60.

38784091

Door Seal

18.

38434035

Handle Release Pedal







19.

21447232

* Screw







20.

36131115

Trunnion Bracket - Left







21.

38781074

Seal - Motor Mount Front







22.

38781073

Seal - Main Body - RH







23.

43191006

Turbine Assembly Hoover 91001019







24.

21447217

* Screw



25.

43411008

Nozzle Assembly (includes item 59)



26.

    NOTE

Hood Assembly's include items 50 & 51








37271103

Hood - Sand - F7425-900, F7431-900, F7441-980. F7443-940





37271099

Hood - Mid. Gray F7430-900 - F7440-980





37271106

Hood-AEF- F7426-900



27.

21447217

* Screw



28.

38421107

Indicator Knob -Ruby - F7425-900




38421106

Indicator Knob - Violet - F7430-900




38421102

Indicator Knob - Lime - F7440-980




38421105

Indicator Knob - Iris Blue-F7431-900, F7441-980, F7443-940





38421108

Indicator Knob - AG-F7426-900



29.

32436003

Rear Axle (2)



30.

38522083

Rear Wheel (2)



31.

160017 *

* Lock Ring (2)
