F7205

Item	Part No.	Description
.	Note #1	- On models F7225-900 from serial number
.		06020000100 to 070200003501 it will be necessary
.		to update the supply tank support when replacing
.		a solution tank.
.	Note #2	- 42272142 Supply Tank and 43513015 Supply
.		Tank Valve Assembly were used on models produced
.		after 1/03.
.		All Model F7221-9000's were produced after 12/02.
.	40201243	Handle Hardware Assembly (Not Shown)
.	34215001	Solution Valve Insulator (Not Shown)
.	43491045	Hose Assembly (Not Shown)
.	38613040	Nozzle Body (Not Shown)
.	57333016	Carpet C:leaning Solution 16 oz (Not Shown)
.	48417005	Bare Floor Cleaning Tool (Not Shown)
.	56518148	Owner Manual (Not Shown)
1.	42272138	Threaded Cap Assembly
2.	39457030	Solution Tank Handle F7210-900 F7220-900
2.	39457031	Solution Tank Handle F7205-900 F7225-900
2.	39457034	Solution Tank Handle F7221-900
3.	42272137	Supply Tank Assembly - See note #1
3.	42272142	Supply Tank Assembly - See note #2
4.	39457029	Recovery Tank Handle F7205-900 F7210-900
5.	42272009	Lid Assembly
6.	43538002	Float
7.	38719043	Float Retainer
8.	38777069	Recovery Tank F7210-900 F7220-900
8.	38777073	Recovery Tank F7205-900 F7225-900
8.	42272083	Recovery Tank F7221-900
9.	36153081	Recovery Tank Latch Right Hand F7210-900 F7220-900
.		F7221-900
9.	36153075	Recovery Tank Latch Right Hand F7205-900 F7225-900
10.	38784063	Standpipe Seal
11.	23149004	Tapping Screw & Washer
12.	23149002	Screw
13.	37196162	Motor Cover
14.	21479438	Screw
15.	34113004	Motor Seal
16.	25156521	O Ring
17.	43576197	Motor Assembly (also order item 21)
18.	38434035	Handle Release Pedal
19.	21447232	Screw
20.	36131113	Left Trunnion Bracket
21.	38781074	Motor Mount Front Seal
22.	38781073	Right Hand Main Body Seal
23.	43191005	Turbine Assembly (Models produced prior to 12/02)
23.	43191007	Turbine Assembly (Models produced 12/02 and after)
24.	21447217	Screw
25.	43411009	Nozzle Assembly
26.	37271091	Hood F7205-900 F7220-900
26.	37271092	Hood F7225-900
26.	37271094	Hood F7210-900
26.	37271105	Hood F7221-900
27.	21447217	Screw
28.	38421102	Indicator Knob F7210-900 F7220-900
28.	38421105	Indicator Knob F7205-900 F7225-900
28.	38421108	Indicator Knob F7221-900
29.	32434011	Rear Axle
30.	38522010	Rear Wheel
30.	38522083	Rear Wheel F7221-900
31.	160017 *	Lock Ring
32.	38458066	Turbine Actuator Arm
33.	38331006	Spring
34.	37272097	Main Body Assembly
35.	37278013	Left Hand Solenoid Cover
36.	23149002	Screw
37.	25686056	Pressure Solution Valve
38.	25411015	Hose Clamp
39.	25686057	Solution Valve
40.	37278012	Right Hand Solenoid Cover
41.	37272098	Front Main Body
42.	48437029	Brush Block Assembly
43.	21447217	Screw
44.	21447268	Screw
45.	03613018	Filter Cassette and Screen
46.	38769022	Baffle Wall
47.	66655448	Tubing - 6 3/4" Trim to length
48.	25411014	Clamp
49.	36131114	Right Hand Trunnion Bracket
50.	51661020	Medallion
51.	51865029	Brush Speed Label
52.	43513014	Supply Tank Valve Assembly
52.	43513015	Supply Tank Valve Assembly (see note #2)
53.	36433169	Lower Cord Hose Hook
54.	38781067	Motor Seal
55.	36153080	Left Hand Recovery Tank Latch F7210-900 F7220-900
.		F7221-900
55.	36153074	Left Hand Recovery Tank Latch F7205-900 F7225-900

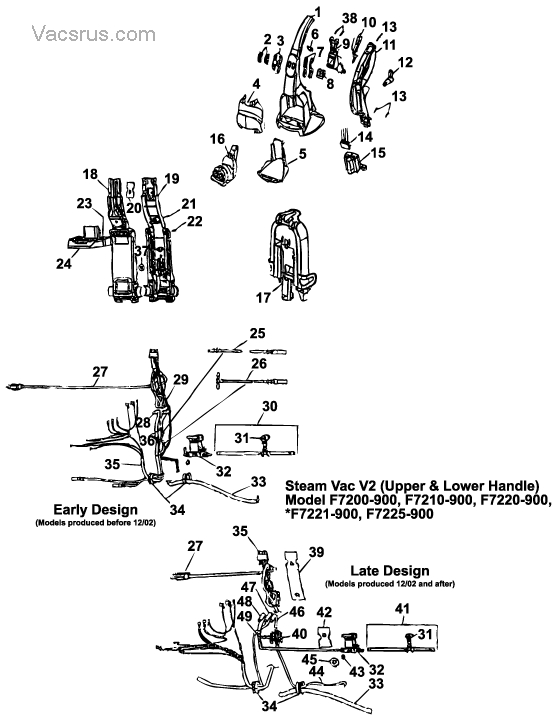

Item	Part No.	Description
.	Note #1	- On models F7225-900 from serial number
.		060200001001 to 070200003501 it will be necessary
.		to update the solution tank assembly when
.		replacing the supply tank support.
.		All Model F7221-900's were produced after 12/02.
1.	39466070	Front Upper Handle Assembly (Models produced prior
.		to 12/02)
1.	39466073	Front Upper Handle Assembly (Models produced 12/02
.		and after)
1.	39466071	Front Upper Handle Assembly F7205-900 (Models
.		produced prior to 12/02)
1.	39466072	Front Upper Handle Assembly F7205-900 (Models
.		produced 12/02 and after)
2.	38421101	Switch Button
3.	52313107	Label
4.	37276016	Tool Holder Cover F7220-900 F7221-900 F7225-900
4.	37276020	Tool Holder Cover F7210-900
4.	37276019	Front Handle Cover F7205-900
5.	36433168	Tool Holder F7220-900 F7221-900 F7225-90
5.	36433176	Tool Holder F7210-900
6.	28218051	Switch
7.	38458065	Switch Rod
8.	28267003	Switch
9.	46658002	Upper Handle Support / Switch Assembly (Models
.		produced prior to 12/02)
9.	46658005	Upper Handle Support / Switch Assembly (Models
.		produced 12/02 and after.
9.	36436023	Support Only as shown
10.	38434030	Control Lever
11.	39458011	Rear Upper Handle
12.	39442047	Cord Wrap
13.	21447072	Screw
14.		Included with item 9
15.	37922013	Wire Cover
16.	48439002	Turbine Nozzle F7220-900 F7221-900 F7225-900
17.	36433167	Tool Caddy
18.	39466075	Front Lower Handle (Models produced prior to 12/02
18.	39466076	Front Lower Handle (Models produced 12/02 and
.		after)
19.	39466080	Rear Lower Handle (Models produced prior to 12/02)
19.	39466081	Rear Lower Handle (Models produced 12/02 and after
20.	34264006	Insulator
21.	21447019	Screw
22.	21447269	Screw
23.	38764031	Metering Plate (Models produced prior to 12/02)
23.	38764033	Metering Plate (Models produced 12/02 and after)
24.	41423018	Supply Tank Support See note #1 (Models produced
.		prior to 12/02 two hoses)
24.	41423017	Supply Tank Support (Models produced 12/02 and
.		after - three hoses)
24.	41423019	Supply Tank Support (Models produced 1/03 and
.		after)
25.	43491042	Connector / Tubing Assembly
26.	43491041	T Connector / Tubing Assembly
27.	46583124	Attachment Cord Assembly
28.	66655448	Tubing - 6 3/4"
29.	66655448	Tubing - 6 3/4" Trim to length
30.	43491043	Connector / Tubing Assembly with Quick Disconnect
31.	43523003	Quick Disconnect Assembly
32.	43582011	Pump Assembly
33.	43445004	Tubing / Elbow Assembly
34.	32456001	Trunnion Sleeve
35.	46658003	Wiring Harness Assembly
36.	25411014	Hose Clamp
37.	34264007	Insulator
38.	21447217	Screw
39.	34285001	Insulator
40.	43513013	Pressure Valve Assembly
41.	43491046	Connector / Tubing Assembly
42.	34264006	Insulator
43.	25411014	Hose Clamp
44.	68266023	Tubing
45.	34264007	Insulator
46.	90001101	Tubing 6 3/4"
47.	90001101	Tubing 6 3/4" Trim to length
48.	66173013	Tubing 22 1/4"
49.	38681010	T Connector
