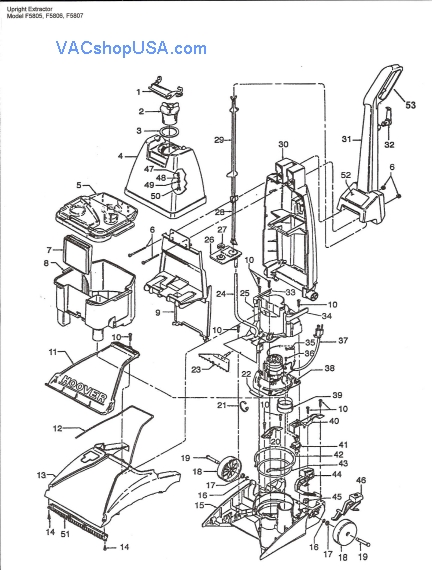

1

Solution Tank Handle

2

Solution Tank Cap Assem. (Inc. Item 3)

3

Gasket

4

Solution Tank Assem. Compo

5

Recovery Tank Lid Assem.

6

Handle Hardware

7

Duct

8

Recovery Tank Assem. (Inc!. Item 5 )

9

Handle Cover

10

Screw SelfTapping - AY (10)

11

N/A

Nozzle Front Plate

12

Seal

13

Hood (Inc!. It. 11,12,13,14,51)

Hood - ABY - F5807 (Inc!. It. 11, 12, 13, 14, 51)

14

Screw Self Tapping (2)

15

Main Body (Inc!. Item 42) F5805 Early models - (See Note)

Main Body (Inc!. Item 42) F5805 Late Models - (See Note), F5806, F5807

16

13730

Lock Ring (2)

17

163110

Washer (2)

18

Rear Wheel (2)

19

Rear Axle (2)

20

Trunnion Cover - R.H.

21

Cable Tie

22

Motor Housing Seal

23

Distributor Assem.

24

Service Tubing

25

Motor/Distributor Cover Assem. (Inc. Item 23)

26

Reservoir Assem.

27

Solution Tank Seal

28

Control Rod - Lower

29

Control Rod Upper

30

Lower Handle - F5805 Early Models - (See Note)

Lower Handle - F5805 Late Models (See Note), F5806, F5807

31

Upper Handle Assem. Compo

32

Cord Wrap

33

Tank Release Latch - R.H.

34

Tank Release Latch - L.H.

35

12227

Insulated Terminal

36

Screw Self Tapping

37

Attachment Cord 33 Ft. (use with GS Motor)

Attachment Cord - 33 Ft. (Use with Ametek Motor)

Attachment Cord 33 Ft. (use with Hoover Motor)

38

Motor Kit - Includes Hoover Motor, Motor Cover, and lead wire. Used

to replace GS Motor on F5805

Motor - Hoover - F5806, F5807

Motor - Ametek - F5806, F5807

Motor - Hoover Motor - F5805

39

Standpipe Seal

40

Trunnion Cover - L.H.

41

Switch

42

Motor Base Seal

43

Motor Intake Seal

44

Handle Release Lever - F5805 Early Models

Handle Release Lever - F5805 Late Models (See Note), F5806, F5807

45

Cord Retainer

46

Switch Actuator Lever

47

Spring

48

Washer - Brass

49

Valve Seal

50

Valve Stem

51

Brush Back Assem. - F5805, F5806

Brush Back Assembly - Dual - F5807

52

Nameplate

53

Handle Lever Guard
