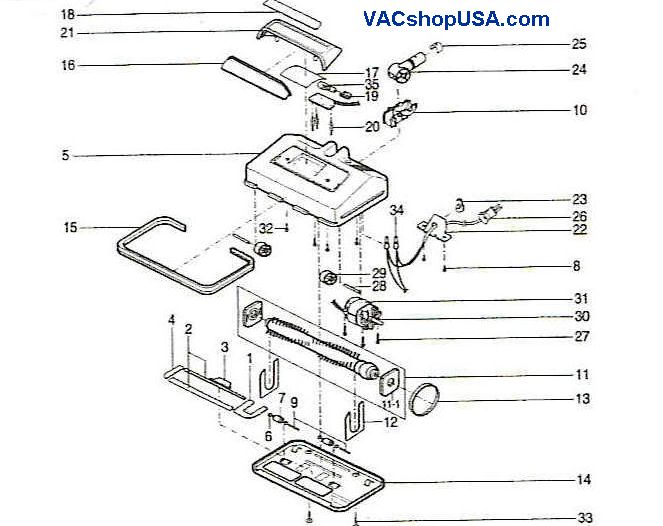

Location No.

Code No.

Description

DJ67-60162E

BRUSH-POWER ASSY VC-9048 Vc .9068

DJ67-60162D

BRUSH-POWER ASSY VC-9013VP

DJ63-20120A

CASKET-BRUSH

2

DJ63-20119A

CASKET-BRUSH

3

DJ63-20121A

CASKET-BRUSH

4

DJ63-20122A

CASKET-BRUSH

5

DJ72-30297A

COVER-BRUSH

6

6044-001019

E-RING

7

DJ66-70226A

ROLLER-FRONT ASSY

8

6002-OOOB55

SCREW-TAPPING

9

DJ70-30143A

SHAFT-ROLLER

10

DJ61-20158A

GUIDE-AIR

11

DJ66-00001A

DRUM BRUSH ROLL ASSY 9048 and 9068

11-1

DRUM BRUSH ROLL ASSY 9069G

12

DJ61-20160A

GUIDE-DRUM

13

DJ66-20107A

BELT

14

DJ70-10113A

PLATE-BASE

15

DJ72-40134A

BAND-AROUND

16

DJ64-90106A

WINDOW-LAMP

17

DJ69-40164A

PAD-BRUSH

18

DJ68-30127A

INLAY-BRUSH VC-9048*, 9068

DJ68-30127B

INLAY-BRUSH VC-9013VP

19

DJ93-10115A

ASSY-LAMP HOLDER

20

DJ73-10174A

CHSHION-LAMP

21

DJ72-30298A

COVER-LAMP

22

DJ70-20114A

BRACKET-BRUSH

23

DJ67-30167A

BUSH-CORD

24

DJ67-50194A

PIPE-C/BRUSH

25

DJ70-50104C

RING-CONNECTOR ASSY

26

DJ39-10112B

CBF-PLUG

27

6002-000171

SCREW-TAPPING

30

DJ31-10102A

MOTOR-DC 120V

31

DJ73-10175B

CUSHION-MOTOR

32

6002-000632

SCREW-TAPPING

33

6002-000638

SCREW-TAPPING

34

3712-001100

CONNECTOR-TEMINAL

35

4713-001068

LAMP-INCANDESCENT 120 volt

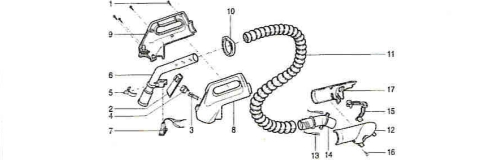

Location Ho.

Code No.

Description

Specification

Q'ty

Remarks

HOSE-ASSEMBLY COMPLETE

COMPLETE ASSY

1

6003-001050

SCREW-TAP TYPE

PH+2S,M4,16L,6LK

4

SWRCH18A

2

DJ72-20133A

PANEL-SWITCH

ABS, DEEP GRY

1

3

DJ63-20262A

W/HARNESS-HANDLE

ASSY BRN

1

4

3402-000167

SWITCH-ROCKER

250V.6A.SPST

1

5

DJ61-20135A

GUIDE-SEL/AIR

ABS, DEEP GRY

1

6

DJ61-30122A

SUPPORTER-PIPE

ABS, DEEP GRY

1

7

DJ39-20225B

W/HARNESS-RECEP

F-79P18/2STP-2

1

8

DJ64-20110A

HANDLE-L

ABS, DEEP GRY

1

9

DJ64-20109A

HANDLE-R

ABS, DEEP GRY

1

10

DJ67-30143A

ENCLOSURE-H/GRIP

ABS, DEEP GRY

1

UL/CSA

11

DJ67-40003A

HOSE-WIRE

PVC

1

12

DJ72-10153B

BODY-CLAMPER.L

ABS, DEEP GRY

1

INSERT

13

DJ67-10159A

HOLDER-TERMINAL

NYLON FR7022 FNC

14

DJ67-50116A

PIPE-CLAMPER

ABS, DEEP GRY

1

15

DJ64-10113A

KNOB-CLAMPER

ABS, DEEP GRY

1

16

6002-000553

SCREW-TAPTTlt

PH+4 3X12LBLK

1

17

DJ72-10154B

BODY-CLAMPER.R

ABS, DEEP GRY

1

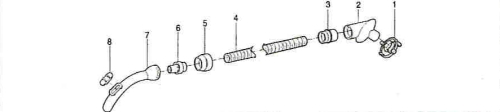

Location No.

Code No.

Description

Specification

Q'ty

Remarks

1 2 3 4

DJ67-40129 DJ64-10101A DJ72-10171A DJ67-10143A DJ67-40102A

HOSE-ASSY KNOB-CLAMPER BODY-CLAMPER HOLDER-CLAMPER HOSE-WIRELESS

ASSY ABS, DEEP GRY PP, DEEP GRY PP, DEEP GRY EVA.SUB GRY.ID32.0

1 1 1 1 1

5

DJ67-30139A

ENCLOSURE-HOSE

PP, DEEP GRY

1

6

DJ67-10142A

HOLDER-HOSE

PP, DEEP GRY

1

7

DJ67-50104A

PIPE-HANDLE

PP, DEEP GRY

1

8

DJ61-20100A

GUIDE-AIR

ABS, DEEP GRY

1

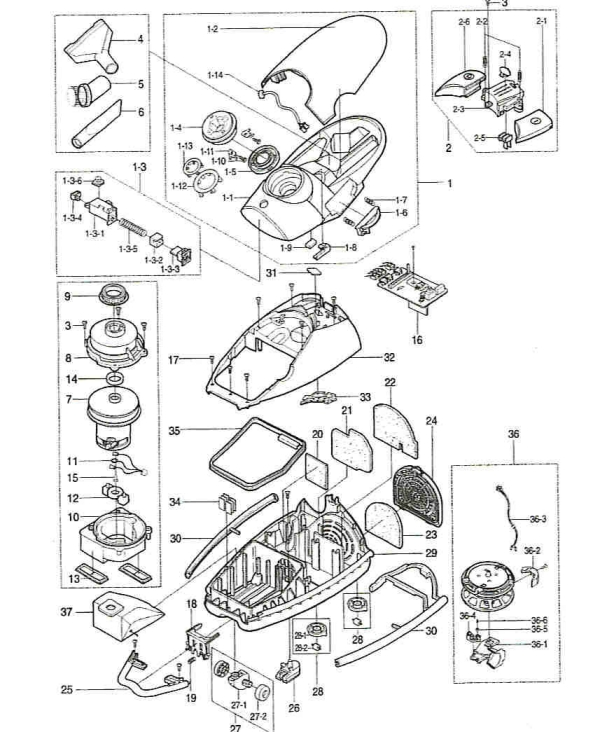

Location No.

Code No.

Description

Specification

Q'ty

Remarks

1

DJ72-30004H

C/DUST ASSY

ASSY(BLUE)

i

VAC-90486

DJ72-30004J

C/DUST ASSY

ASSY(RED)

1

VAC-9048R

DJ72-30004K

C/DUST ASSY ASSY(FWIOLET)

1

VAC-9048G

DJ72-30004G

C/DUST ASSY ASSYIR/VIOLET1

1

VC-9013VP(R/VIOLET)

DJ72-30004F

C/DUST ASSY ! ASSY(REO)

1

VC-9013VP!REDi

DJ72-30004E

C/DUST ASSY USSYSBLUE)

1

VC-9013VP(BLUE)

DJ72-30249L

C/DUST ASSY

ASSY(YELLOW)

i

VC-9013V

1-1

DJ72-301Q5K

COVEB-DUST

ABS

1

BLUE

DJ72-30105L

COVER-DUST

ABS

1

RED

DJ72-30105M

COVER-DUST

ABS

1

ROCCOCO VIOLET

DJ72-30105J

COVER-DUST

ABS

1

YELLOW

1-2

DJ72-30104J

COVER-ATTACH

ABS(BLUE)

1

VAC-90486

DJ72-30104K

COVER-ATTACH

ABS(RED)

1

VAC-9048R

DJ72-30104L

COVER-ATTACH

ABS1R/V1OLET)

1

VAC-90486

DJ72-30104M

COVER-ATTACH

ABS(BMOLET)

1

VC-9013VP(R/VIOLET]

DJ72-30104E

COVER-ATTACH

ABS(RED)

1

VC-9013VP(RED)

DJ72-30104D

COVER-ATTACH

ABS(BLUE)

1

VC-9013VPIBLUE)

DJ72-30104F

COVER-ATTACH

ABS(YELLOW)

1

VC-9013V

1-3

DJ66-60121A

INDICATOR-ASSY

ASSY

1

1-3-1

DJ67-50132A

PIPE-INDICATOR

MS

1

1-3-2

DJ66-60106A

PISTON-INDICATOR.G

ABS

1

1-3-3

DJ66-60105A

PISTON-INDICATOR.R

ABS

1

1-3-4

DJ62-20104A

TUBE-INDICATOR

PVC

1

1-3-5

DJ61-70148A

SPRING-INDICATOR

HSWR

1

1-3-6

DJ64-90103A

WINDOW-INDICATOR

MS

1

1-4

DJ61-20116A

GUIDE-TURN.U

PC+ABS G20(BLK)

1

DJ61-20115A

GUIDE-TURNING

ABS.DEEP GRY

1

VC-9013V

1-5

DJ61-20117A

GUIDE-TURN.L

PC+ABS G20IBLK!

i

1-6

DJ61-10106A

CLAMPER-DUST

ABS(BLUE)

1

1-7

DJ61-7Q149A

SPR1NG-C/DUST

HSWR

2

1-8

DJ67-30006C

CAP-SLIDE

ABS(BLUE)

1

1-9

DJ67-30001A

CAP-DUST

NBR

1

1-10

6002-600630

SCREW-TAP.PH

2S-3x6

1

1-11

DJ71-10145A

TERMINAL-C/REEL

BsS 0.3;

2

1-12

DJ71-10143A

TERMINAL-RING.O

BsS 0.5;

2

1-13

DJ71-10144A

TERMINAL-RING.1

BsS 0.5:

1

1-14

DJ39-20008B

W/HARNESS-C/DUST

ASSY \

1

1-15

DJ63-50004A

SPONGE-BODY

PE-SPClMGE

6

2

PANEL-CONTROL ASSY

assy. Deep Gray

1

UL

2-1

DJ64-10140B

BUTTON-SAW MAIN

ABS.DEEP GRY

1

ON/OFF

2-2

DJ61-70177A

SPRING-S/FILTER

PW1,PI0.6,D7.4

2

2-3

DJ72-20102B

PANEL-CONROL

ABS.DEEP GRY

1

2-4

DJ72-20102A

KNOB-SLIDE

ABS.Df EP GRY

1

2-5

DJ72-20102A

FIXER-KNOB

ABS.NlR

1

2-6

DJ64-10139B

BUTTON-C/REEL

ABS.DlEP GRY

1

CORD REWIND

3

6003-001050

SCREW-TAP TITE

PH_{I+.2:,,M4,L16,BLK,SWRCH12A}

Location No.

Code No.

Description

Specification

Q'ty

Remarks

6

DJ67-50177B

PIPE-CREVICE

PP.SU6 GRY

1

VAC-9048 ». 9068*

DJ67-50153D

PIPE-CREVICE

PP.SUB GRY

i

VC-9013V

DJ67-50206A

PIPE-CREVICE ASSY

PP.SUB GRY

1

VC-9013VP

7

DJ31-30162C

MOTOR-FAN AC

OCM-2503 x 1 , 1 20V,60Hz/UL, 1 2A, 1 4

1

8

DJ67-20100A

CASE-MOTOR.F

PP-NTR

1

9

DJ73-10106A

CUSHION-CASE

NR-NTR

1

10

DJ67-20101A

CASE-MOTOR B

PP,NTR,BJ-730

1

11

DJ39-20244A

W/HARNESS-MOTOR

UL1015,#18,22

1

12

DJ73-10115A

CUSHION-MOTOR B

NR.BUC

1</
